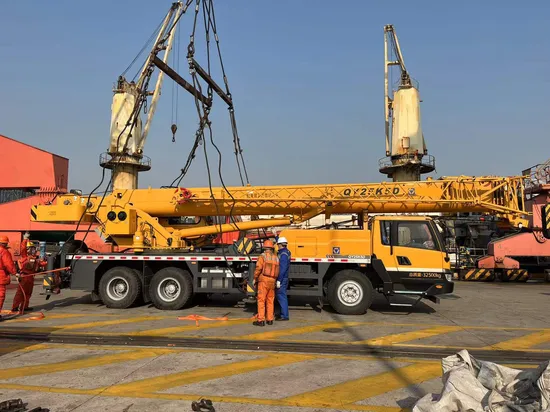

CE 25 Ton Construction Hydraulic Telescopic Truck Crane Qy25K5d Mobile Truck Crane

Product Description

Product Description *. Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.*. Aluminium alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.*. Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.*. Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45ºC.
Detailed Photos

Product Parameters

Description		Unit	Parameter value
Overall length		mm	12650
Overall width		mm	2500
Overall Height		mm	3380
Wheel Base		mm	4425+1350
Total vehicle mass in travel configuration		kg	29400
Engine Model			SC8DK280Q3
Engine rated power		kw/(r/min)	206/2200
Engine rated torque		N.m/(r/min)	1112/1400
Max. travel speed		km/h	75
Min. travel speed		km/h	2.9
Max. grade ability		%	30
Max. total rated lifting capacity		t	25
Max. load moment	Base boom	KN.m	1000
	Fully-extended boom		600
	Fully-extended boom + Jib		376
Hoist height	Base boom	m	10.8
	Fully-extended boom		34.19
	Fully-extended boom + Jib		42.3
Boom length	Base boom	m	10.7
	Fully-extended boom		34
	Fully-extended boom + Jib		34+8.15
