Product Description
Product Description

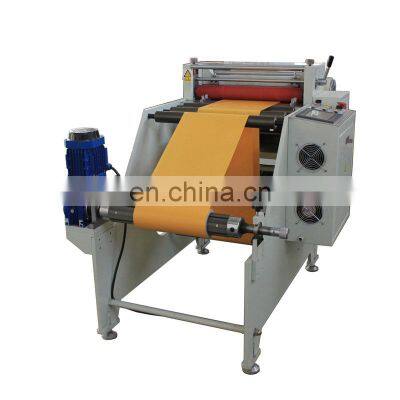

PET PVC PE PP film roll to sheet cutting machine paper cutting machine
Functional Characteristics:
1.DELTA servo motor pull the material,high precision.
2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.
3.3 inch inflatable shaft for unwinding.
4.Pulling roller coat thick PU rubber and won't scratch the material.
5.Polished and anodized aluminum guiding roller,very smooth and never harm the material.
6.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.
7.Optional:Panasonic photocell to track the printed mark for precise cutting.
8.Other standard machine:360mm,600mm,800mm,1000mm,1400mm.
Purpose:
This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.
Technical Data:
Model
| DP-360 | DP-500 | DP-600 | DP-800 | DP-1000 | DP-1400 |
Max Feeding Width ( mm )
| 360
| 500 | 600 | 800 | 1000 | 1400 |
Max unwind roll diameter(mm )
| 600
| 600 | 600 | 800 | 900 | 800 |
| Max unwind roll weight(kg) | 40 | 40 | 40 | 50-60 | 50-60 | 50-60 |
| Unwind shaft diameter | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch |
| speed ( times/minute ) | 40 (Cut 450mm) | 70 (Cut 320mm) | 50-80 (Cut 600mm) | 50-80 (Cut 600mm) | 50-80 (Cut 600mm) | 80 (Cut 100mm) |
| Total Power | 1kw | 1.5kw | 2.5kw | 3kw | 3kw | 4kw |
| PLC | MITSUBISHI | MITSUBISHI | MITSUBISHI | MITSUBISHI | MITSUBISHI | MITSUBISHI |
| Servo Motor Servo Driver | DELTA | DELTA | DELTA | DELTA | DELTA | DELTA |
| Precision ( mm ) | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 |
Voltage
| 380V 50HZ
| 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Electrical listing:
Touch Screen
| KUNLUNTONGTAI
| Made in China
|
Programmable Controller
| MITSUBISHI
| Made in Japan
|
Servo Driver
| Delta
| Made in Taiwan
|
Servo Motor
| Delta
| Made in Taiwan
|
Motor of cutting knife
| SHENLI
| Made in China
|
AC Contactor
| CHNT
| Made in China
|
Solid State Relay 20A
| GOLD ELECTRICAL CONTROL
| Made in China
|
>>
