Universal Radial Arm Metal Drilling Machine Price for Sale

Product Description

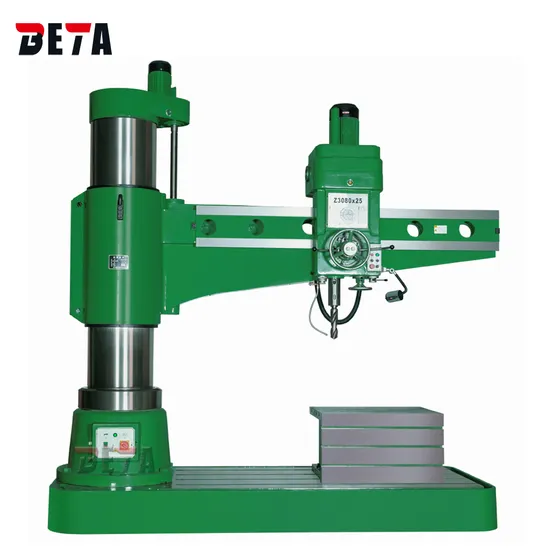

Universal Radial Arm Metal Drilling Machine Price for Sale

Model	Unit	Z3063x20A	Z3080x25
Max. Drilling capacity	mm	63	80
Distance spindle axis to column generating line	mm	450-2050	500-2500
Diameter of column	mm	450	550
Spindle taper		MT5	MT6
Spindle travel	mm	400	450
Spindle speeds range	r/min	20-1600	16-1250
Spindle speeds series	step	16	16
Spindle feeds range	mm/r	0.04-3.2	0.04-3.2
Spindle feeds step	step	16	16
Max. distance spindle nose to base surface	mm	400-1600	550-2000
Dimension of worktable	mm	950x630x500	1000x800x560
Dimension of base	mm	2900x1250x250	3530x1400x300
Overal size	mm	3110x1250x3150	3730x1400x3790
Spindle motor power	W	5.5	7.5
G.W/N.W	kg	6795/7145	10000/10450
Packing size	mm	3480x1470x2210	3870x1620x2230 3730x1540x1530

Features:
1. The radial drilling machine construction designed elaborately, with pefect appearance and convenient maintenance.
2. The headstock radial arm and column are clamped by manual clamping mechanisms.
3. All controls centrealized on the headstock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
4. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
5. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
7. Main gears are machined by gear grinding, ensuring high precision and low noise.
Standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts
Radial drilling machine is a type of drilling machine where the radial arm can rotate and lift around the column, and the spindle box usually moves horizontally on the rocker arm. When machining holes on a vertical drilling machine, the alignment between the tool and the workpiece is achieved through the movement of the workpiece, which is obviously very inconvenient for some large and heavy workpieces; The radial drilling machine can be aligned by moving the position of the tool shaft, which brings great convenience to machining holes on large and heavy workpieces in single and small batch production.
It can also be called a radial drill. It is a hole processing equipment that can be used for various forms of processing, such as drilling, expanding, reaming, tapping, and scraping the end face. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among various types of drilling machines, radial drilling machines are easy to operate, flexible, and have a wide range of applications. They are typical and particularly suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general mechanical processing workshops.

---
