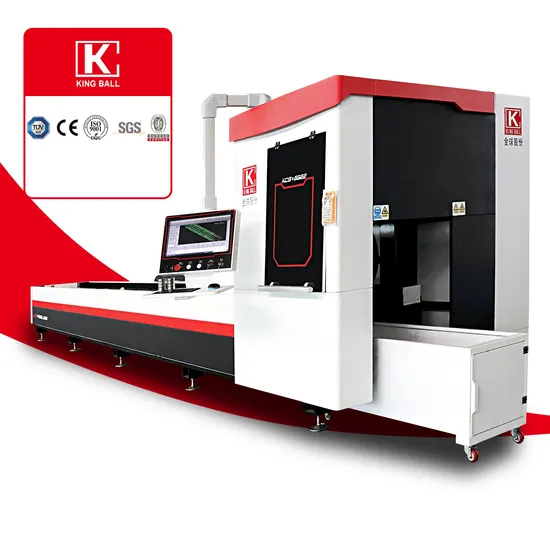

Tube Laser Cutting Head Support 1500W-3000W Stainless Steel Laser Cutting Machine

Product Description

1,Specifications:

NO.	ITEM		LT-6020D
1	CONTROL		CYPCUT
2	LASER RESONATOR		IPG 1500W
3	LASER HEAD		RAYTOOLS
4	WATER CHILLER		HANLI
5	SERVO MOTOR		Yaskawa
6	CHUCK	TYPE	MECHANICAL SELF-CENTERING CHUCK AND PNEUMATIC CHUCK
		DIAMETER(mm)	φ20-φ220
		MIN. WASTE LENGTH(mm)	190
		RATED RESOLUTION(r/min)	40
		MAX. RESOLUTION(r/min)	80
		WEIGHT BEARABLE(TOGETHER)	150Kg
7	X	TRAVEL	6800mm
		TRAVELLING RATED SPEED (m/min)	43
		TRAVELLING MAX. SPEED (m/min)	86
8	Y	TRAVEL (mm)	400
		TRAVELLING RATED SPEED (m/min)	40
		TRAVELLING MAX. SPEED (m/min)	60
9	Z	TRAVEL (mm)	180
		TRAVELLING RATED SPEED (m/min)	30
		TRAVELLING MAX. SPEED (m/min)	60
10	RAIL(TAIWAN BRAND)		25,20
11	TRANSMISSION		X: 2 MOL 6 LEVEL OF GRINDING Y: BALL SCREW Z: BALL SCREW
12	REDUCER		CHINESE BRAND
13	POSITIONNING ACCURACY		±0.05/1000mm
14	REPEAT POSITIONNING ACCURACY		±0.05
15	ELECTRICAL PART		CHINT
16	PNEUMATICAL PART		SMC,Air TAC
17	EXTRACTION SYSTEM		KINGBALL
18	SUPPORT		PNEUMATIC
19	DUST EXTRACTION		OPTION
20	BED		WELDED STEEL TUBE STRUCTURE

Certifications
Our Service Pre-sales services:
1. inquiry and consulting support 2. sample testing support
3. visit our factory
After-sales services:
1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery
overseas

FAQ 1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.

---
