Xilinx Platform Cable USB Download Cable Jtag Programmer for FPGA CPLD The new upgraded DLC10 version. The Platform Cable USB, a USB compatible cable for in-circuit configuration and programming of all Xilinx devices.
It derives all operating power from the hub port controller. No external power supply is required. A sustained slave-serial FPGA configuration transfer rate of 24 Mb/s is possible in a Hi-Speed USB environment.
Features:
Using CY7C68013A+XC2C256 solution, fully compatible with the original for XILINX Platform Cable USB.
Supports for all Xilinx devices, FPGA configuration and PROM/CPLD programming.
Supports JTAG, Slave-Serial and SPI.
Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V.
Selectable target clock frequency, supports software automatic frequency adjustment.
Supported on Windows and Red Hat Enterprise Linux.
Automatically senses and adapts to target I/O voltage.
LED Status Indicator.
Target clock speeds are selectable from 750 kHz to 24 MHz.
Supported Software:
For Xilinx ISE 8 to ISE 14.7 and up-to-date ISE software
For Xilinx Vivado
IMPACT
ChipScope
Microblaze embedded processor debugging
Supported Device:
For all Xilinx devices, FPGA and PROM/CPLD.
All Virtex-FPGA families.
All Spartan-FPGA families.
XC9500 / XC9500XL / XC9500XV CPLDs.
CoolRunnerXPLA3 / CoolRunner-II CPLDs.
XC18V00 ISP PROMs.
Platform Flash XCF00S/XCF00P/XL PROMs.
XC4000 series FPGAs.
For fresh Xilinx devices including V7, Z7 etc.

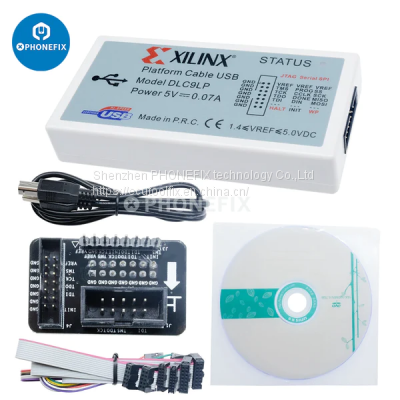

Package Contents:
1 * Platform Cable USB
1 * JTAG adapter
1 * USB 2.0 cable
1 * 8-pin to 7-pin separated robin cable
1 * 14-pin (2.5mm pitch) JTAG flat cable
1 * 14-pin (2mm pitch) JTAG flat cable
1 * 10-pin (2.5mm pitch) JTAG flat cable
Only the above package content, other products are not included.
>>
