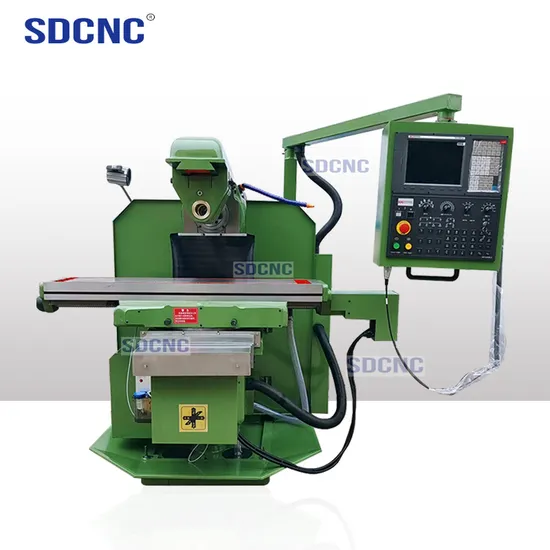

Factory Direct Sales Xk6132 CNC Universal Automatic Milling Machine

Product Description

The main performance characteristics:
1.CNC horizontal lifting platform milling machine is good rigidity, can bear heavy load cutting work.
2, CNC horizontal type lifting platform milling machine with enough power and wide range of spindle speed. High
speed cutting can be made by using hard alloy cutter, and the cutting efficiency can be fully played.
3, the spindle speed has impulse device, easy to change, the machine can quickly and effectively brake.
4, machine tool and important mechanical parts are manufactured from the alloy steel, easy to wear and tear of
the parts are made of wear resistant material, Plastic guide rail , to ensure the machine has enough service life.
5.CNC horizontal lifting platform milling machine three motion are limiting device to ensure the safety of workers
and machine tool, but also can be used as the multi machine tool management.
6, CNC horizontal lifting platform milling machine has a perfect lubrication system, Important transmission parts
and bearings have perfect lubrication device,At the same time an set indicator for Conduct regular inspection
7, Good reliability, economical and practical, the price function than good
Application:
1. Horizontal lifting platform milling machine is available on a variety of cylindrical milling cutter, wafer type
milling cutter, angle cutter, molding cutter and milling processing of various plane, inclined plane, such as grooves.
2. If you use the appropriate milling machine accessories, processing gear, cam, an arc-shaped groove and a
helical surface of special shape of parts,
3. Configuration universal milling head, circular table and indexing head and so on milling attachment,Can further
expand the scope of the milling machine, this machine is applicable to all kinds of mechanical processing industry. Product Parameters
Product main technical parameters:

Specifications	Units	XK6132	XK6140
Table size	mm	1320x320	1700x400
Table travel (X.Y.Z)	mm	900x290x350	920x380x350
T-type slot numbers / width /space	mm	3-18-80	3-18-90
Max. load working table	kg	320	500
Distance from spindle axis to table	mm	20-370	30-410
Distance from column vertical guide way to the center of table	mm	225-505	275-625
Rapid feed speed(X.Y.Z)	mm/min	6000/3000/6000	6000/3000/6000
Feed speed (X.Y.Z)	mm/min	6-3200/3-1600/6-3200	6-3200/3-1600/6-3200
Spindle taper		ISO50(7:24)	ISO50(7:24)
Spindle speed range	rpm	30-1500(18 steps)	30-1500(18 steps)
Spindle motor power	KW	7.5	11
Longitudinal, transverse feed motor torque(X.Y)	N. m	12	12
Vertical feed motor torque (Z)	N. m	22	22
Max. spindle torque	N. m	1000	1000
Overall dimensions(Lx W x H)	mm	2300x2055x2400	2400x2200x2400
Machine weight	Kg	3000	4250

---
