Advertising Industry CNC Oscillating Knife Sticker Cutting Machine

Product Description

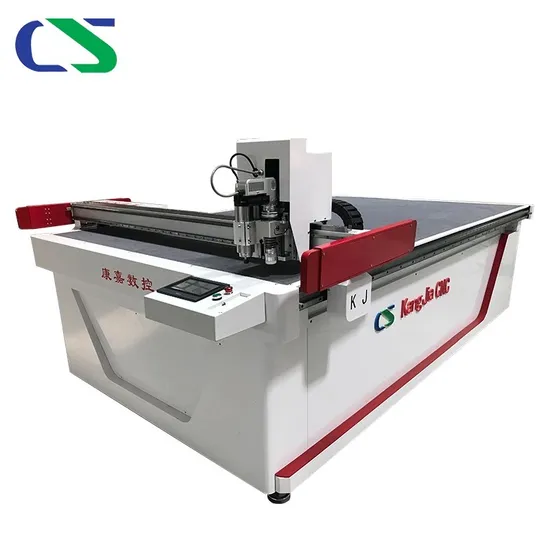

Advertising Industry CNC Oscillating Knife Sticker Cutting Machine
Machine Introduction:
Integrated Welding Steel Constructed Table
The machine is built with a durable, stable, 6mm all-steel tube frame which significantly reduces vibration and gives the operator tight control for precise cutting.
Conveyor System
Designed for easy loading and unloading of materials, the Conveyor System provides operators a fast advance control of material and serves as a vacuum cutting surface ideal for roll materials.
Digital Servo Drive System
Brushless AC Servo Motors, guide rail, rack and pinion are integrated into the machine providing both velocity and torque with uncompromised accuracy for cutting applications.
Safety Device
Equipped with infrared automatic sensor device and four emergency stop buttons, the Safety Device provides a safe working environment.
Accurate and Stable Working Table
The cutting table is built with 7 series aviation aluminum which contains a honeycomb structure inside, sturdy, high-precision, non-deformable, stable for long-term running.
Regional Vacuum Adsorption System
The vacuum adsorption area can be selected according to the size of the materials. By using individual vacuum controls for each area, the vacuum system greatly reduces the need for masking open areas of the table.
Motion Control system
The motion control system consists of a motion controller and a LCD touch control panel. It can make the cutting process smooth, efficient, perfect. And the control panel is quite easy to operate with English interface.
Cutting Heads
The machine can be equipped with one cutting head or multiple cutting heads. Different cutting tools can be changed and mounted on the cutting heads for different cutting needs.
About us
Certifiction
Our company has been certified by ISO9001, SGS, CE certification.

Technical Parameters:
Cutting Tools Recommended	Various tools(According to the material equipped with appropriate tools)
Rated Power	11kw
Max. Cutting Speed	1200mm/s
No-load Speed	1500mm/s
Cutting Thickness	0.1-110mm (depending on the materials)
Cutting Accuracy	±0.1mm
Transmission Interface	Ethernet
Drive System	Servo motor, linear guide rail, rack and pinion
Material Fixed Mode	Vacuum adsorption
Format Supported	DXF, PLT
Operation Property	Online/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtime
Safety Device	Infrared sensing device, 4 emergency stop buttons, intelligent anti-collision device
Power Supply	AC 110V/220V/380V, 50/60Hz, single/two/three phase

Main Parts:
S/N	Items	Brand	Details
1	Servo Motor	Panasonic (Japan)	X: 400w (width) Y: 750w (length) Z: 100w (up and down) W: 100w (rotary)
2	Linear Guide Rail	PMI (Taiwan, China)	Large loading capacity, high transmission accuracy & high transmission speed
3	Ball Screw	TBI (Japan)	High precision and minimal reverberation gap
4	LCD Control Panel	Kangjia (China)	Size: 7 inch Resolution: 800x480 Voltage: 10.5-28VDC KWH: 1A@12VDC, 450mA@24VDC
5	Vacuum Adsorption Platform	Kangjia (China)	The platform is made of 6-series aluminum alloy, and the built-in honeycomb support structure is made of 7-series aviation aluminum, which ensures that the platform will not be deformed for a long time
6	Underlay	Ammeral Beltech (Netherlands)	The underlay is made of high density polyester fiber. Its life time is longer. It provides great cutting resistance. This cover not only protest blades well, but also provides wonderful breathable channel to guarantee good hold-down. 2.5mm or 4mm can be chosen

Exhibition
Packing and delivery
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our service
Before sales: Reply you within 24 hrs for your inquiry or question. Learn your detail requirements and what material you will cut. Then recommend the good solution that suit for you. Sign sales contract and receive the deposit. In sales: Arrange production. Track the production schedule. Debug machine. Pack with wooden box and shipping. After-sales service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp / Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. If necessary, the fields service can be provided.
FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?
Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.
Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.
Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.

---
