Automatic High Capacity Fish Feed Making Machine Production Line

Product Description

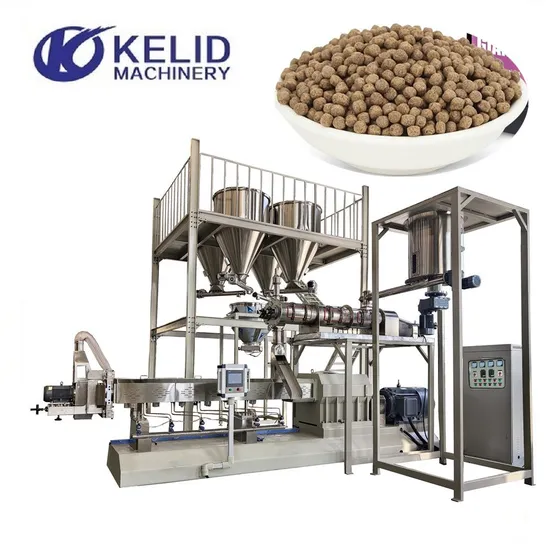

Automatic Dry High Capacity Fish Feed Making Machine
1.Description
Fish feed machine can be used to producing floating fish feed and sinking fish feed.The floating fish feed pellet machine can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.

a. Raw Materials adopts wheat flour, rice flour, corn flour, pet meal and bone meal as raw materials

b. Products this line can be used to produce fish pellets, the pellets size can be from 1.0mm to 12.0mm by adjusting the dies from extruder; meanwhile it can produce dog food, cat food.

c. Capacity 150kg/h, 240kg/h, 500kg/h, 1ton/h-3ton/h

d. Flow chart.
Mixing system---Extrusion system----Drying system----Flavoring system---Packing system
e. Voltage in China Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

f. Machines Materials for dry dog food machine
Machine Material: Stainless Steel #304, thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand
Inverter: Delta brand

H. Technical Parameters

Model	Installed power	Real power	Output	Dimension
KLD65	81.5kw	53kw	100-150kg/h	21000x1200x2200mm
KLD70	115kw	76kw	200-240kg/h	23000x1500x2200mm
KLD85	181kw	117kw	400-500kg/h	28000x3500x4300mm
KLD90	135kw	100kw	1000kg/h	30000x3500x4300mm
KLD115	165kw	115kw	2000kg/h	30000x3500x4300mm

2. Features of Our Twin Screw Extruder
Twin screw extruder with steam heating system ensure the most efficient, continuous and stable heating effects.
a. Big capacity feeding hopper, variable frequency speed, two stages mixing wings, fast and efficient mixing and feeding.
b. DDC Double axis differential conditioner, available for steam, Pre- cooking and high efficient.
c. Linear slide face cutting system, strong power, variable frequency speed and large output,
d. Unique designed square barrels, made by hard carbide sleeve, hard-wearing and durable.
e. Modular circular groove screws, available for different extrusion rate applications.
f. SIEMENS(CHINA) brands electronic apparatus used in the controller box, make sure the extrusion process perfect.
g. Main motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

3. Details

4. Package & Shipment
Packing: inside plastic bag, outside wooden case(Based on the customers' need adopt the wooden case or wooden pellets, etc.) forPet food making machine
Transportation: shipping, train, express or upon clients' demands for fish feed making machine
5. Company Introduction
Jinan Kelid Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development. All Inquiries are welcome.
We are located in Jinan, the Capital of Shandong Province. Jinan Kelid Machinery Co; Ltd is vested with many staffs with many years of experience in supplying the food processing machines.
Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc... Most importantly, we also provide formulas, technology supports, machine inspection service, etc^..
Cooperating with different manufacturers and research centers, we provide the food processing machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the clients specific requirement, we also design and produce the machines to order. We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Whatever food processing machine you need from China, contact: Jinan Kelid Machinery Co; Ltd. A one stop shop in the middle of China.
6. Services & Customers

Before sale services for pasta making machine
1.Provide the free consultation of the equipment
2.Provide the standard device and the flow chart
3. According to the clients'special requirement, offering the reasonable plan and free design helping to select the equipment.

Services during the sales for pasta making machine
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.

After sale services for pasta making machine
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
7. Certificate
8. FAQ
9. Contact Information
If you have any question, do not hesitate to contact me.

---
