US$0.21
10,000-299,999 Watt
US$0.19
300,000-1,499,999 Watt
Basic Info.
Number of Cells
144(6*24)
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Packing
620PCS Per 40′ft Container
Cell Type
Mono Perc Half Cell
Glass
3.2mm Coated Tempered Galss
Cell Orientation
144(6*24)
Frame
Black Anodized Aluminium Alloy
Maximum System Voltage
DC1500V
Keyword
Monocrystalline Solar Panel
OEM Order
Provide Custom Products
Operational Temperature
-40~+85
Power Output Tolerance
0~+5W
Transport Package
Pallets
Specification
2279*1134*35mm
Production Capacity
200000000watts Per Month
Packaging & Delivery
Package Size
178.60cm * 111.50cm * 59.50cm
Package Gross Weight
780.000kg

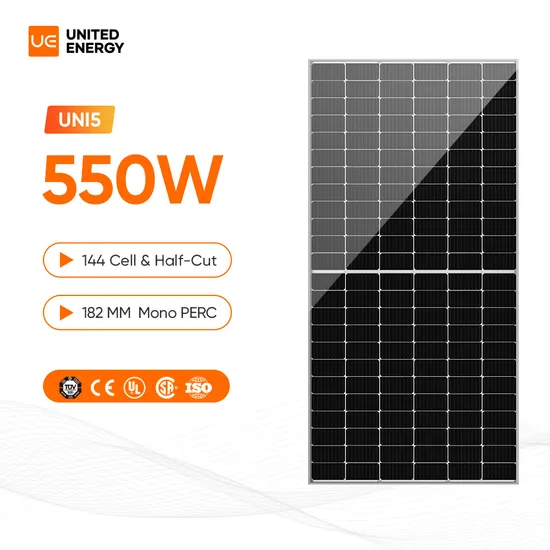

Product Description
Product Description
Electrical Characteristics
| Cell Orientation | 144(6*24) |
| Glass | Single Glass |
| Frame | Anodized aluminum alloy |
| Weight | 28kg ±3% |
| Power Output Tolerance | 0~+5W |
| Max. System Voltage | DC1500V(IEC) |
| Model Number | UE535M-72H | UE540M-72H | UE545M-72H |
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (Pmax/W) | 535 | 398 | 540 | 402 | 545 | 406 |
| Open Circuit Voltage (Voc/V) | 49.34 | 46.57 | 49.44 | 46.67 | 49.54 | 46.77 |
| Short Circuit Current (Isc/A) | 13.79 | 11.14 | 13.86 | 11.2 | 13.93 | 11.26 |
| Voltage at Max Power (Vmp/V) | 40.63 | 37.91 | 40.72 | 38.08 | 40.81 | 38.25 |
| Current at Max Power (Imp/A) | 13.17 | 10.5 | 13.27 | 10.56 | 13.36 | 10.62 |
| Module Efficiency(%) | 20.71 | 20.9 | 21.09 |
| Temp Coefficient of Isc | +0.04%/°C |
| Temp Coefficient of Voc | -0.25%/°C |
| Temp Coefficient of Pmax | -0.34%/°C |
| Model Number | UE550M-72H | UE555M-72H | UE560M-72H |
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (Pmax/W) | 550 | 410 | 555 | 414 | 560 | 418 |
| Open Circuit Voltage (Voc/V) | 49.64 | 46.87 | 49.74 | 46.97 | 49.84 | 47.07 |
| Short Circuit Current (Isc/A) | 14 | 11.32 | 14.07 | 11.38 | 14.14 | 11.44 |
| Voltage at Max Power (Vmp/V) | 40.9 | 38.42 | 40.99 | 38.59 | 41.08 | 38.76 |
| Current at Max Power (Imp/A) | 13.45 | 10.68 | 13.54 | 10.73 | 13.64 | 10.79 |
| Module Efficiency(%) | 21.29 | 21.48 | 21.67 |
| Temp Coefficient of Isc | +0.04%/°C |
| Temp Coefficient of Voc | -0.25%/°C |
| Temp Coefficient of Pmax | -0.34%/°C |
Certifications
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solar PV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy's products have been widely applied in over 150 countries. UE Production Line
UE Quality Control
>>
