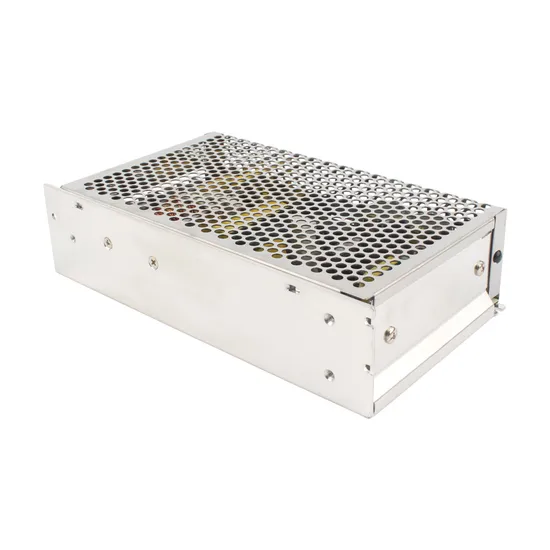

| SPECIFICATIONS | ||||||||||||
| OUTPUT | ||||||||||||
| Model | Q-120B | Q-120C | Q-120D | |||||||||
| Output number | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 |
| DC Voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
| Rated Current | 11A | 4A | 1A | 1A | 10A | 3.5A | 1A | 1A | 8A | 2A | 2A | 1A |
| Current Range | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.2-5A | 0.2-2A | 0.2-1A |
| Rated Power | 120W | 120W | 120W | 120W | 122.5W | 122.5W | 122.5W | 122.5W | 124W | 124W | 124W | 124W |
| Ripple & Noise | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 120mVp-p | 180mVp-p | 120mVp-p |
| Voltage Adj. Range | CH1:-5%, +10% | CH1:-5%, +10% | CH1:-5%, +10% | |||||||||
| Voltage Tolerance | ±2% | ±6% | ±6% | ±6% | ±2% | +10%, -5% | ±6% | +10% ,-5% | ±2% | ±6% | ±6% | ±6% |
| Setup, Rise, Hold Up Time | 200ms, 50ms, 20ms at full load | |||||||||||
| Voltage Range | 88~132VAC/176~264VAC selected by switch 47-63Hz; 240~370VDC | |||||||||||
| AC Current | 2.8A/115V 1.6A/230V | |||||||||||
| Efficiency | 77% | 76% | 80% | |||||||||
| Inrush Current | Cold start 35A | |||||||||||
| Leakage Current | <3.5mA/240VAC | |||||||||||
| Over Load | 105%~135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Over Voltage | CH1:115%~135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Working Temp., Humidity | -10ºC~+60ºC; 20%~90%RH | |||||||||||
| Storage Temp., Humidity | -20ºC~+85ºC; 10%~95%RH | |||||||||||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||||
| Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||||||
| Safety Standard | Design refer to 1950,TUV EN60950 | |||||||||||
| EMC Standard | Design reefer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204 | |||||||||||
| Dimension | 199*110*50mm(L*W*H) | |||||||||||
| Weight | 0.86Kg | |||||||||||
| Packing | 16pcs/14.7Kg/0.95CUFT | |||||||||||
| NOTE | ||||||||||||
| 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Each output can within current range. But total output power can't exceed rated load. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||||||
