Self-Loading Concrete Mixer SD1000m by Construction Site

Product Description

Introducing the Self Loading Mobile Concrete Mixer - Your Ultimate Construction Companion!
When it comes to boosting productivity on your construction site, look no further than our Self Loading Mobile Concrete Mixer. With its increased mixing capacity, this innovative equipment ensures that your concrete is perfectly blended, all while being managed by just one person. Say goodbye to the hassle of shifting equipment and monitoring the blending operation separately - our mixer does it all!
But that's not all - our Self Loading Mobile Concrete Mixer is versatile and cost-effective, making it suitable for a wide range of construction projects. From housing and commercial projects to roads, bridges, and trenching, this mixer reduces the cost of concrete mixing without compromising on quality. It's the perfect solution for all your construction needs!
At Topall, we pride ourselves on providing technically advanced concrete solutions, and our Self Loading Mobile Concrete Mixer is no exception. Equipped with reliable and fast technology, including 180 drum slewing, a front cab, and a hydraulic mechanism that closes the shovel, this mixer ensures efficient and precise operation. Plus, with its electronic weighing method, you can rest assured that your concrete will be mixed to perfection every time.
So why wait? Choose Topall for all your concrete equipment needs. Our Self Loading Mobile Concrete Mixer is the ultimate option for easier and faster construction activities. Experience the difference today!

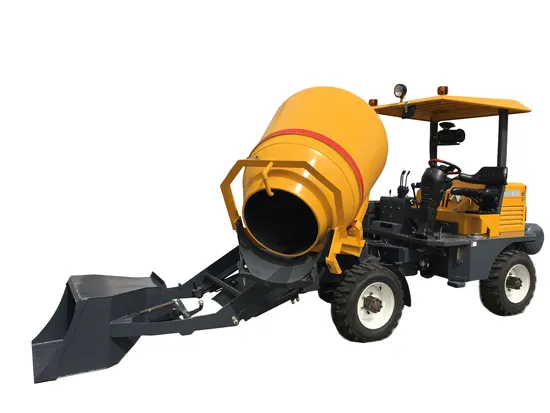

Mobile Self-Loading Dumper Mixer Model SD1000M/SD1500M/SD2000M
Characters:
1. It is designed for hilly and narrow site, where big vehicle not accessible,
2. It save cost of labors, and also can give a good mixing concrete as batch plant,
3. The simple structure is easy to operate and maintenance, also cost less too
Technical ParsmetersTechnical Parsmeters

Model	SD1000M	SD1500M	SD2000M
Effective capacity per batch	1m3	1.5m3	2m5
Output Per hour	5~7m3	8-11m3	10-14m3
Drive type	Articular frame,4X4 driving	Articular frame,4X4 driving	Articular frame,4X4 driving
Max speed	25 km/h	25~30 km/h	25~30 km/h
Grade ability	36%	30%	30%
Mini turning radius	≤5.5 m	≤7 m	≤7 m
Mini ground clearance	≥248mm	≥248mm	≥248mm
Tire front wheel/ Rear wheel	10-16.5/10-16.5	20.5-16/ 20.5-16	16/70-R22.5/ 16/70-R22.5
Clutch system	Constant-contact, single-disc ,dry clutch	All Hydraulic System	All Hydraulic System
Gearbox	Four forward +four rear	2 High and 2 Low +2 Rear	2 High and 2 Low +2 Rear
Tipping system	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge	Hydraulic tipping and 180 angle discharge
Steering	Hydraulic steering	Hydraulic steering	Hydraulic steering
Diesel engine	40hp Xinchai NC485 diesel engine	99hp Yuchai 4100 diesel engine	106hp Yuchai 4102 diesel engine
Weight	2450kg	6200kg	7500kg
Bucket Capacity	0.25m3	0.4m3	0.5m3
Overall size	3620×1800×2500mm	5100×2350×2850mm	5300×2350×2950mm
Load Container Plan	1×40HQ /2 Unit	1×40HQ /2Unit	1×40HQ /2 Unit

---
