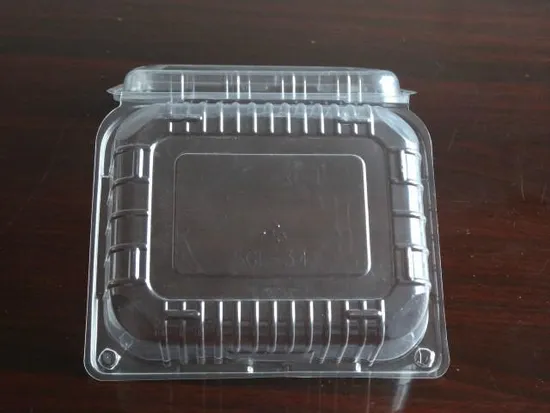

High Speed Automatic PP Catering Tray Food Container Clamshell Box Making Machine

Product Description

MODEL-600L MULTISTATION THERMOFORMING MACHINE

technical parameter:	MODEL-500/600L
Suitable Sheet	PP+PE, Casting PP, PLA, PET, PVC, PS,
Largest Forming Area	600mm*500mm
Maximum Width	620mm
Maximum Depth	90mm
Power	68Kw
Air Pressure	0.6-0.8Mpa
Production rate	10-30die/min
Depth of Sheet Material	0.10mm-1.50mm
Weight	5200Kgs
Overall Dimension	7500mm*2000mm*2200mm(L*W*H)

Model-600L thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PSP/PLA plastic products.
Main Feature:
1. This Machine is with PLC program control and lift HIM, with function of forming, punching, cutting and stacking.
2. The main parts are used with high quality and international brand.
3. Machine with stable running, easy operation features, servo motor control, large power of punching and cutting, temperature control by PID, convenient for all kinds of plastic products.
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
Quotation: valid for 30days.

---
