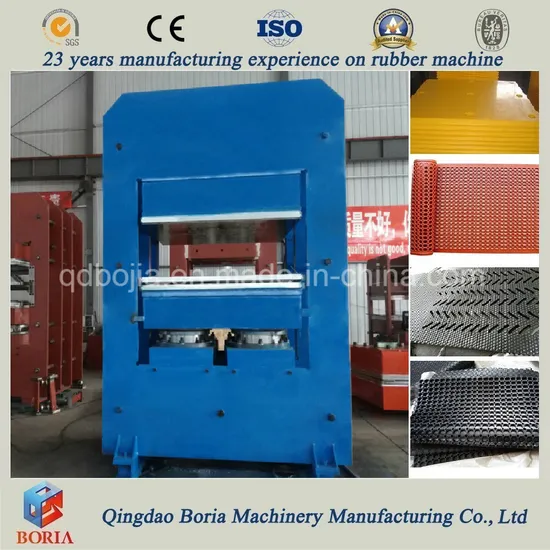

Large Frame Rubber Plate Vulcanizer Machine Plate Vulcanizing Press Machine

Product Description

Heating Platen Hydraulic Vulcanizing Press Machine Product Description
I. Features of rubber plate vulcanizing press
1. Fame structure
2.This press with PLC control, high production efficiency.
3. The presses heating method with steam heating or electrical heating we can as our clients required to design.
4. Press with automatic warning device, high safety and convenient.
5. The machines used for rubber vulcanization are known as rubber vulcanizing machines.
6. This rubber vulcanizing machine strengthens raw rubber by chemically treating it and make rubber harder and stronger.
This vulcanization machine is extremely useful for testing strength of rubber and find applications in numerous industries. Product Parameters
II. Technical parameter

Type	XLB-DQ1200× 1200× 2	XLB-DQ1300× 2000× 1	XLB-Q1200× 2500× 1	XLB-Q1500× 2000× 1	XLB-Q2000× 3000× 1	XLB-Q1400× 5700× 1
Total Pressure(MN)	315t	560t	750t	1000t	1800t	2800t
Plate Size(mm)	1200× 1200	1300× 2000	1200× 2500	1500× 2500	2000× 3000	1400× 5700
Daylight (mm)	200	400	400	400	400	400
Layer NO.	2	1	1	1	1	1
Piston Stroke(mm)	400	400	400	400	400	400
Plate Unit Area Pressure	22	21.5	25	33.5	30	35
Main Motor Power(kw)	3	8	9.5	11	26	43.5
Overall Dimension(L× W× H) (mm)	1685× 1320× 2450	2000× 1860× 2500	2560× 1700× 2780	2810× 1550× 3325	2900× 3200× 2860	2400× 5800× 3600
Weight(kg)	9500	17000	20000	24000	66000	110000

Detailed Photos
III. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.
IV. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.

---
