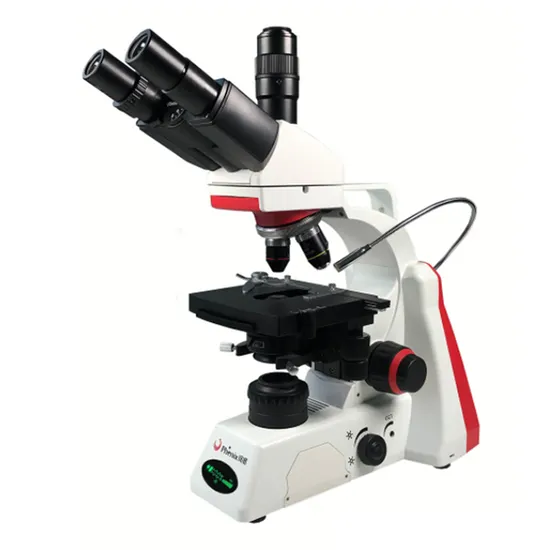

Trinocular Biological Optical Microscope for Lab BMC100-A3

Product Description

Product Description
BMC100 series laboratory biological microscope adopts ergonomic design, with smooth lines and beautiful appearance. With intelligent LCD digital display window, it has ACT color temperature switching function and ECO intelligent sensor function.

Product Features:
Ergonomic design, simultaneous visual observation and digital display at the same latitude
ACT color temperature switching function
ECO smart sensor function
EDF depth of field extension and image stitching function
Intelligent LCD digital display window
Observe physical specimens and have auxiliary lighting functions

Product Details:
Binocular and trinocular observation tube
Adjustable binocular tube, 30° tilt, lens tube can be rotated 360°
Achromatic objective lens
4X, 10X, 40X (spring), 100X (spring, oil)


Coaxial coarse and fine movement
Coarse movement stroke: 28mm, fine movement accuracy: 0.002mm

Lighting system
Upper light source: USB flexible light, 360° lighting without any blind spot
Bottom light source: adjustable color temperature , 3W LED light


Side-mounted drawer type light box


Intelligent LCD digital display window
The ECO smart sensor function can automatically turn off the power after the user leaves for 30 minutes
ACT color temperature switching function, can adjust the light source brightness according to user needs


Product Parameters

Model Number	BMC100-A2	BMC100-A3
Total magnification	40X-1000X
Observation tube	Binocular, 30° inclined, 360° rotatable	Trinocular, 30° inclined, 360 ° rotatable
Eyepiece	WF10X/18mm
Objective	PH Infinity Achromatic Objective
	4X
	10X
	40X(Spring)
	100X(Spring, Oil)
Nosepiece	Four Holes Nosepiece
Stage	Curved double-layer mechanical platform, 140x140mm, stroke 76x52mm
Focusing mechanism (gear drive)	Coarse and fine movement coaxial, adjustable elasticity, Coarse movement stroke: 28mm, micro movement accuracy: 0.002mm
Condenser	Abbe condenser, NA=1.25, iris diaphragm, center adjustable, handwheel lifting
Collecting mirror	Critical illumination (Kohler illumination), adjustable field diaphragm
Upper Light source	USB flexible light, 360° lighting without any blind spot
Bottom light	3W color temperature adjustable LED, compound eye lighting, brightness adjustable, color temperature adjustable, right-side insertion and removal
Intelligent sensing device	30 minutes delay induction shutdown
Photoelectric Smart Display	LED intelligent display of the working status of the up and down lights and battery power
Power supply	External regulated power adapter DC 5V/2A, Rechargeable battery 3.7V-1600mAh
Others		0.5X C-type interface
