Happy Birthday Paper Plate Machine Series

Product Description

JBZ-500 top speed paper plate making machine prices (hydraulic pressure )
1. Equipment Name: Paper Plate Machine
2. Description:
JBZ-500 Paper Plate Machine Description: Model ZDJ-400 Medium-speed Automatic Paper Plate Forming Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one. Model JBZ-500 medium-speed paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. Pressure can reach to 5T, Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism desin. Standard JBZ-500 Paper plate machine has two working stations, each station install one set of mold and each station has separately PLC digital control and electric control. It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.
3. Technical Specification:
JBZ-500 Paper Plate Machine Technical Specification:
A. HS. Code: 8441309000
B. Paper Plate Size: 5--11 inch (mold exchangeable);
C. Raw Material: Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other;
D. Suitable paper weight: 100--500 GSM (gram a square meter);
E. Rated Productivity: 60--80 piece/minute (total two stations, about 3600--4800PCS per hour);
F. Total Power: 3 KW;
G. Power Source: 220V 50Hz or other required;
H. Total Weight: 600 Kg;
I. Package Size (L x W x H): 1.43m X 1.6m X 1.9m;
J. Air source: Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air comprssor);
K. If your plate is very large, and the paper is up 600GSM, we design a special machine for you.
Pressurizing Air Cylinder Technical Specification:
A. MPT-63-150-5T-10;
B. Air flow vlume: 0.8 cubic/min;
C. Air pressure: 0.6-0.8Mpa;
D. Air cylinder stroke: 150mm;
4. Samples:

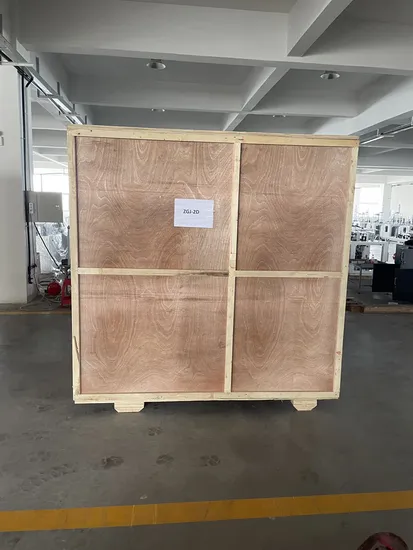

5. Export Standard Wooden Box
When you order 1-2sets of paper dish forming machine, we advice you to go by consolidate. When you buy more than 2 sets,
You can ship by container.
20 FT can load 4machines, 40FT can load 10machines
6. Compare to other supplier, our advantages as follow:
A. We are have biggest production b. 80%of our dish machines are for export, so our machine is following closely to quality. C. We have more experience for others for the moulds production.
D. Delivery time fast. F. Faithful to all of our customers. G. Price reasonable.

---
