PRODUCT OVERVIEW:

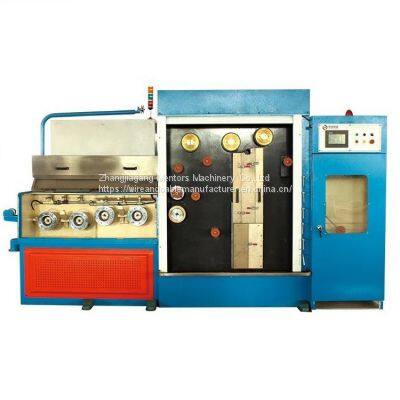

Fine wire drawing machine with annealing is special for drawing and annealing copper wires .
Finished wire is wound by 300 steel bobbin.
FEATURE:
(1):Wire quantity: 1 wire
(2): Max.Inlet wire: 0.5- 1.2 mm, outlet wire: 0.15-0.35 mm
(3): Raw material: pure copper or brass wire.
MAIN SPECIFICATION:
Machine type
| BRN-DT24
|
Inverter control
| Dual inverter control
|
Drawing dies No./max.
| 24
|
Inlet diameter
| Ø 0.5- 1.2mm
|
Out diameter
| Ø0.15- 0.35mm
|
Max.Drawing line speed
| 1800m/min
|
Slip ratio of m/c
| 13%
|
Fix speed capstan slip ratio
| 8%
|
Frame
| Welded by steel plate
|
Capstan
| Ceramic plasma capstan
|
Main motor
| 15kw
|
Spooler motor
| 4kw
|
Annealing voltage
| DC 0-60V
|
Annealing current
| DC 250A
|
Protection type
| Steam or nitrogen
|
Spool bobbin size
| Ø 300mm OR according to customers
|
Transmission type
| By flat belts
|
ADVANTAGES:
(1). Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
(2). Third-section-annealing system, outside electrically neutral (no current flow to other unit)
(3). Machine’s body and other key components and parts are produced by our own factory, quality is reliable.
FAQ:
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
>>
