Low Price Universal Machinery Metal Turning Q1335 Big Spindle Bore Conventional Horizontal Pipe Thread Lathe

US$16,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Q1335
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Bed Width
550mm
Swing Over Bed
630mm
Turning Length
1500mm
Spindle Bore
230mm
Motor
12
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month

Product Description

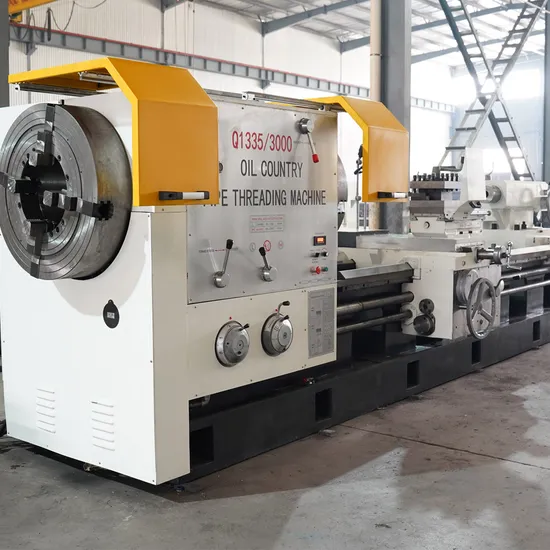

PIPE LATHE MACHINE FEATURES:
Q13 series of pipe threading lathe is mainly used for processing inner and outer pipe thread (including metric thread, inch thread etc.),
and also can undertake various turning works such as turning inner and outer cylindrical surface, and other revolution and end surface etc.
This lathe series is equipped with a taper device, which can be used for processing taper parts.
SPECIFICATIONS:
SPECIFICATION UNIT Q1335/1500
Max dia.swing over bed mm 1000
Max dia.swing over cross slide mm 610
Max.length of work-piece mm 1500
Width of bed mm 755
Spindle bore mm 360
Power of spindle motor Kw 22
Spindle speed r/min 6-260 VF2 steps
Z axis feed grade/range mm/r 32/0.1-1.5
X axis feed grade/range mm/r 32/0.05-0.75
Carriage rapid traverse speed mm/min 3740
Cross slide rapid traverse speed mm/min 1870
Metric thread grade/range mm 23/1-15
Inch thread grade/range T.P.I 22/28-2
Traverse of cross slide mm 520
Max. Traverse of turret mm 300
Tailstock quill travel mm 300
Tailstock quill Dia./taper mm Φ140 MT6#
Chuck Φ780 4-jaw electric
Overall dimensions(L*W*H) mm 5600*2300*2300
Weight T 12.5/13
