Product Description
Product Description

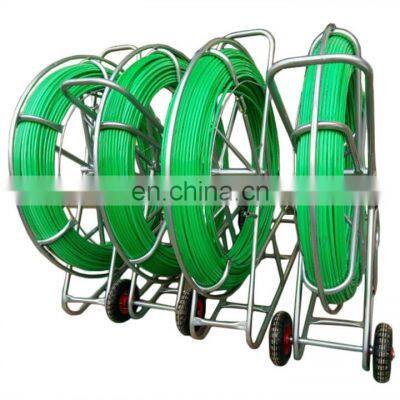

rodding cane 18mm cable rod 300 meter 12mm duct rodderDuct rodder, also called fiberglass duct rodder, it is a powerful auxiliary tool used for rope traction in the pipe.
Smooth and flexible surface of the duct rodder can easily make the rope or cable pass through the narrow channel. And according to the construction,the duct rodder can be divided into fiberglass duct rodder and traceable duct rodder.According to the movement type, it can also can be divided into duct rodder withwheel and portable duct rodder.Fiberglass duct rodder, an excellent auxiliary tool, is commonly used in track construction where cable and electric wire is hard to be pulled into cable, pipes and conduits.
Technical data of Fiberglass Duct Rodder
|
Specification
| Rod Diameter (mm)
| Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
|
Rod Length (m)
| 50-500m
|
Frame Spec.(mm)
| 50cm*40cm*15cm, 67cm*57cm*16cm,130cm*120cm*48cm
|
Wheel Diameter(mm)
| 300mm
|
Wall thickness of Metal Frame
| 2.2mm
|
Color
| blue, yellow, red, white etc
|
Material
| Rod Inner
| Extruded by fiber glass and high strength resin at high temperature
|
Rod Outer
| High Density polyethylene coating
|
Iron Frame
| Steel with high-temperature sprayed plastic or Spray coating
|
Wheel
| rubber
|
Brake
| Yes
|
Drawing head
| copper
|
Physical Characters
| Density
| 55g/m
|
Working temperature
| -40°C to +80°C
|
Breaking tension
| 100kg
|
Bending Radius
| 295mm
|
Technology
| Pultrusion
|
Packing
| Inside
| plastic woven strip wind around the frame
| |
Outside
| Wooden pallet and Wooden box
|
More display for fiberglass duct rodder:
Besides duct rodder with frame, We can also just supply fiberglass rod without frame, such as 6mm*100m, 14mm*300 fiberglass rod. We can do diameter 4.5mm-18mm, length 30m-500m.
Welcome your inquiry anytime.
Fiberglass duct rodder package:
We always wrap the duct rodder with Woven bag, then we pack them in cartons.
