Galvanized Iron Wire Mesh Gabion Box Welded Metal Gabion Wall for Strong Structural Support

Product Description

Product Description
Plastic Coated Galvanized Reinforced Pavement Gabion Boxes Net

Anping Runcan company GABION BOX

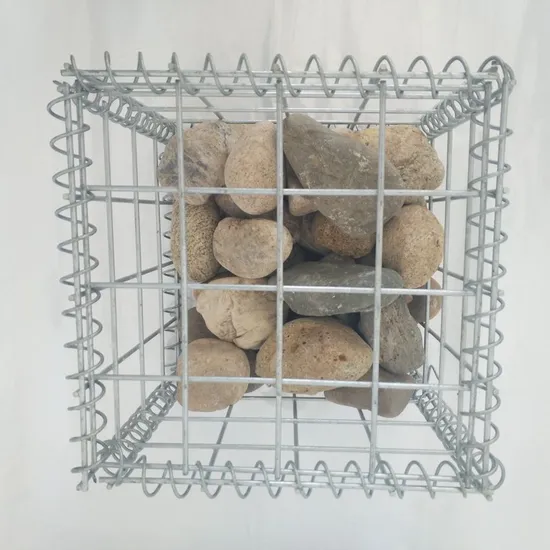

Gabion boxes are mechanically woven from low-carbon steel wires with high corrosion resistance, high strength and ductility or PVC-coated steel wires. The box-shaped structure made of this mesh is a gabion box.Gabion mesh is an iron wire or polymer wire mesh format that holds the stone filling in place. A wire cage is a structure made of a mesh or welding of wire. Run Can : specializes in the production of gabions, with complete division of labor, rich production experience, and many years of export experience. We can customize production according to your needs.
GABION BOX MESH INTRODUCE:
In garden landscape projects, highway slope protection, dam bank protection and greening of steep mountain slopes have always been difficult problems in the project.Ecological gabion box: It can not only meet the stable protection requirements of mountains and beaches, but also achieve the effect of greening the environment. It is also economical and convenient.
Application process is high-strength galvanized steel wire is woven into rectangular cages of different specifications, and the cage is filled with stone structures. After this structure is applied to bank slope protection, the gaps between the stones are continuously filled with soil under the dual effects of man-made and natural factors. Plant seeds gradually take root and sprout in the soil between the stones, and grow vigorously, with roots firmly fixing the stones and soil. In this way, the purpose of slope protection and greening can be achieved, and the effect of improving ecology and preserving soil and water is also very significant.
PARAMETER:
1. Size:2m x 1m x 1m; 3m x 1m x 1m; 4m x 1m x 1m; 2m x 1m x 0.5m; 4m x 1m x 0.5m
can also be produced according to customer requirements.
2. Aperture: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm, 90*110mm
The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
3. Wire diameter: Gabion mesh is divided into three wire diameters-mesh wire, edge wire, and binding wire.
(1) The wire is 2mm-4mm
(2) The edge wire is generally larger than the mesh wire, 0.5-1.0mm thicker than the mesh wire.
(3) The binding wire is generally smaller than the mesh wire, and the most common ones are 2.2mm.
4. Steel wire tension: not less than 38kg/m2 380N/mm
5. Surface treatment:
(1) Electro-galvanizing. The amount of zinc applied is 10g/m2. Poor corrosion resistance;
(2) Hot dip galvanizing. The amount of zinc applied can reach 300g/m2. Strong anti-corrosion;
(3) Galvan: zinc-5% aluminum-mixed rare earth alloy steel wire; zinc-10% aluminum mixed rare earth alloy steel wire. Super anti-corrosive;
(4) PVC plastic coating. The thickness of the plastic coating is generally 1.0mm.
6. Partition: Add a partition every meter along the length of the gabion mesh.
7. Size: Can be customized according to standards.

General Specifications			Specifications For Southeast Asia
Gabion Box (M)	Wire Diameter	Mesh	Gabion Box (M)	Gabion Mattress	Wire Diameter	Mesh hole
1x1x0.5	2.2mm 2.5mm 2.7mm 3.0mm 3.5mm 4.0mm	6x8cm 8x10cm 10x12cm	2x1x0.5	1x1x0.3	2.2mm 2.7mm 3.0mm 3.4mm 3.5mm	6x8cm 8x10cm 10x12cm
2x1x0.5			2x2x0.5	1x2x0.3
3x1x0.5			1x1x1	2x2x0.3
4x1x0.5			1x2x1	2x3x0.3
5x1x0.5			1x3x1	2x4x0.3
1x1x1			2x4x1	2x6x0.3
2x1x1			Material: Hot dip galvanized, Galfan galvanized wire, Pvc coated galvanized Tensile strength: 350-550Mpa Hot dip galvanized-Zinc coating: 40-60g/m2, 240-300g/m2(heavy galvanized) Support customization, please contact us to inform your needs.
3x1x1
4x1x1
5x1x1

ADVANTAGE:
1. The construction is simple, just put the stones into the cage and seal it.
2. Low cost.Gabion mesh prices are extremely competitive.
3. Good landscaping and protection effects. The ecological gabion cage technology uses a combination of engineering measures and plant
measures, which can effectively prevent water and soil erosion, achieve quick landscape results,make the landscape effect more natural and rich.
4. Long service life, the ecological gabion cage process has a service life of decades, and generally does not require maintenance.
5. The flexible structure can adapt to changes in slope without being damaged, and has better safety and stability than rigid structures;
6. Strong resistance to water erosion;
7. It is water-permeable and inclusive, conducive to the growth of natural plants and gradually restores the original ecological environment;
8. This product can be combined into a flexible whole, which is convenient, fast, efficient and has good economic performance during construction
and throwing. Our company is an export company integrating design, development, production, sales and service. It mainly produces Stainless Steel Wire Mesh, Fence, Gabion net accessories and other Screen products. The company takes technology as the forerunner, continuously carries out technological innovation, and strictly follows the quality management system in production. Our products are exported to more than 70 countries and regions in Southeast Asia, Eastern Europe and South America.
Our company will provide you with high-quality products, advanced design, and thoughtful service.looking forward to long-term cooperation with you!

---
