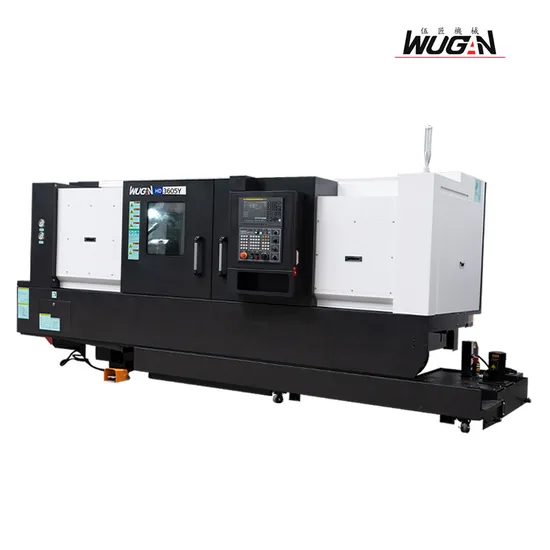

HD3605y-12 Heavy Cutting CNC Machine Tool, Surface Grinding Machine, Mill Lathe Combo Machine

Product Description

-Robust Box Guideways for Heavy-Duty Cutting Excellence
-30° Precision-Slanted One-Piece Bed Structure for Unmatched Rigidity
-Advanced Stabilized Unit Structure to Minimize Thermal Displacement
-Seamless Integrated Processing via Synchronized Main/Sub Spindle Control (SY Type)
--Versatile Multi-tasking with Wedge Type Y-axis BMT Turret for Enhanced Efficiency
Exceptional Rapid Traverse Rate: 30m/min (Z-axis) for Swift Operations
-User-Centric Ergonomic Design for Effortless Access to Chuck and Tool

ITEM			UNIT	HD3605Y
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	1280
	Bar Capacity	Main	mm	119
		Sub	mm	-
SPINDLE	Chuck Size	Main	inch	12"
		Sub	inch	-
	Spindle Bore	Main	mm	91
		Sub	mm	-
	Spindle Speed	Main	r/min	2,500
		Sub	r/min	-
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	-
	Torque(Max/Cont.)	Main	N·M	543/440
		Sub	N·M	-
	Spindle Type	Main	-	BELT
		Sub	-	-
	Spindle Nose		-	A2-11
			mm	-
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	265/120{±60}
		Z/ZB	mm	1350
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	40
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	4.5
	Torque(Max/Cont.)		N·M	76
	Collet Size		mm	∅20{ER32)
	Type		-	BMT65P
TAILSTOCK	Taper		-	MT#5
	Quill Dia.		mm	∅100
	Quill Travel		mm	120
	Travel		mm	1350
TANK CAPACITY	Coolant Tank		ℓ(gal)	225
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	35
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	4,195x1,978
	Height		mm	1,857
	Weight		kg(lb)	7,400
CNC	Controller-		-	FANUC Oi Series

Detailed Photos
ALL-IN-ONE BED DESIGN FOR OPTIMAL PERFORMANCE
Precision-Engineered Structural Analysis
Our machine design employs rigorous structural analysis to enhance the tool post body and reduce machine height, ensuring the bed maintains dynamic rigidity even during challenging heavy-duty operations.
Furthermore, the HD-SY Series boasts a 30-degree bed slope for unrivaled machining stability.
Innovative Integrated Coolant Tank
Designed with a conveniently front-positioned coolant tank, this structure facilitates easy chip removal from the machine's right side.
Box Guideway
The HD-SY Series features Box guideways across all axes, delivering superior travel capability and effectively counteracting vibrations during intense heavy-duty cutting tasks.
Sealed GIB Structure for Enhanced Durability
Our HD Series X-axis employs a sealed GIB structure, significantly reducing turcite damage from chips.
Rapid Traverse Rate (X/Y/Z/ZB)
HD 3605Y/SY offers rapid traverse rates of 24/10/30/24 m/min.
Travel Range (X/Y/Z/ZB)
HD 3605Y/SY provides expansive travel dimensions of 265/120/1350/1350 mm.
Mill Turret with Superior Security
The BMT turret is fortified with four bolts and a key on its tool mounting surface, ensuring robust tool fixation for high reliability in rigidity and precision.
Innovative Mill Tool Holder
Boosted machining capabilities with the addition of a straight milling head tool holder for side machining and an angular milling head tool holder for I.D. operations.
BMT 65P (HD3605Y/SY)
Optimal Speed: 4000 r/min
Collet Size: ø20 (ER32)
Indexing Efficiency: 0.2 sec/step
Suzhou Wugan Intelligent Equipment Co., Ltd. excels in creating high-performance CNC lathes and CNC turning centers, leveraging the latest international lathe technology. Designed with cutting-edge innovation, these machines embody high rigidity, precision, productivity, and aesthetic elegance. Our offerings provide customers with robust and reliable cutting performance, catering to the demanding needs of today's marketplace. Additionally, our high-performance mill-turn combination models allow for comprehensive turning, milling, and drilling functionalities within a single machine, enhancing production capacity and adeptly meeting diverse processing requirements across various customer profiles.

---
