Tire Sidewall Cutting Machine Tire Bead Ring Cutter Strip Cutter Lump Cutter

Product Description

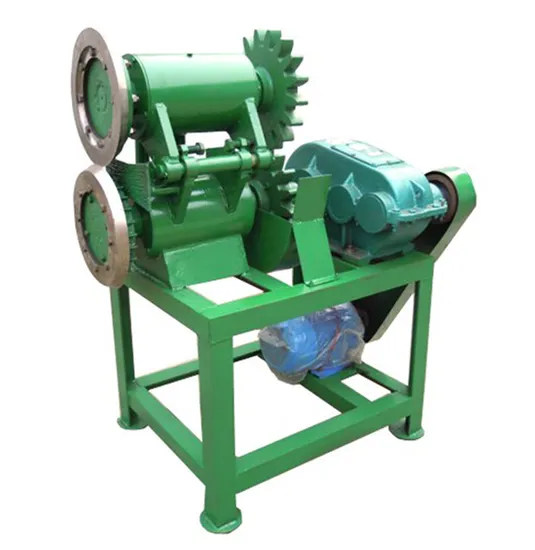

Tire Sidewall Cutting Machine Tire Bead Ring Cutter Strip Cutter Lump Cutter /Waste Tire Cutting Machine Product Description STRIP CUTTER
Application:
It is utilized in cutting the tire crown and side wall of waste tire into rubber strip.
Introduction:
Stable performance and excellent quality,two disc cutter adopts special metal heat treatment, can be used repeatedly grinding
Features:
The materials of disc knife is a special metal heat treatment, so the knife is high hard, wearable and durable.

Production capacity	1000kg/h
Motor power	5.5kw / 7.5kw
Motor rotating speed	1440r/min
Speed reducer model	350
Speed ratio	31.5
Size of discharged materials	20-40mm
Machine weight	720kg
Overall dimension	1250*700*1500mm

LUMP CUTTER Application: It is used together with strip cutter to cut long rubber strip into rubber lump of 30-50mm. Introduction: Stable performance and excellent quality, cutting tools with carbide, hard and durable, can be used repeatedly grinding. Features: The cutter materials are excellent hard alloy steel, high hard and wearable.

Production capacity	1000kg/h
Motor power	18.5kw
Motor rotating speed	1440r/min
Size of discharged materials	30-50mm
Machine weight	900kg
Overall dimension	850*850*1250mm
