Mk1320 CNC External Cylindrical Grinder Machine for Drill Point Ball Lens

Product Description

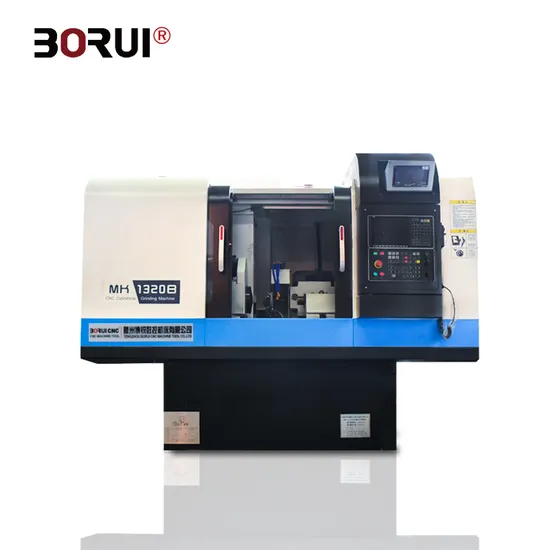

MK1320 High precision CNC external cylindrical grinding machine
Product Description

Application:
Feature:
1,The spindle of the grinding wheel adopts the large taper four-oil wedge bearing to automatically adjust the gap dynamicpressure, which has higher rigidity and precision of the grinding wheel.
2,Table (Z axis) drive and horizontal feed (X axis) drive drive adopts THK ball screw servo direct drive structure,Table(z-axis)guide rail adopts open unloading hydrostatic guide rail structure, good rigidity, motion balance, low friction coefficient, lowspeed and no creep.The transverse-feed (X-axis) guide rail adopts Swiss linear guide rail and applies pre-tightening forceto meet the requirements of high rigidity, low friction, no clearance and good dynamic response for precision grinding.The workhead adopts static spindle top grinding structure with good rigidity, suitable for precision grinding.3,Tailstock sleeve adopts linear bearing structure, no gap feeding, good rigidity, and can realize hydraulic braking and manualdual mode control.
4,The bed adopts double-layer structure (finite element analysis), special ratio cast iron casting, manual scraping and grindingof guide rail surface, good dynamic/static rigidity, stable thermal deformation.Product main technical parameters:
Details Display
Company Profile


FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
