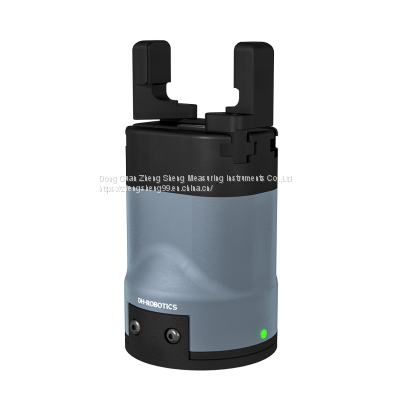

Servo-Electric Grippers PGC-300-60

Product Details

Product Description

Product Description
Product features
1.High protection level
2.Plug and play
3.Big load
Application scenarios
With cooperative robots, a series of complex processes including clamping, handling and assembly are completed in scenarios such as medical automation, 3C electronics, new energy, and robot new retail.
Technical parameters
Hold power(one side) ：40~300N
Total trip ：60mm
Maximum recommended load ：6kg
Open/close time : 0.8s/0.8s
Position repetition accuracy : ±0.03mm
Running noise：＜50 dB
The weight of the : 1.5kg
The transmission way ：Precision planetary reducer+The gear and rack
size : 178mm×90mm×90mm
Runtime environment：
Working voltage ：24V DC±10%
Ratted current ：0.4A
Peak current ：2A
Protection grade ：IP67
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS

---
