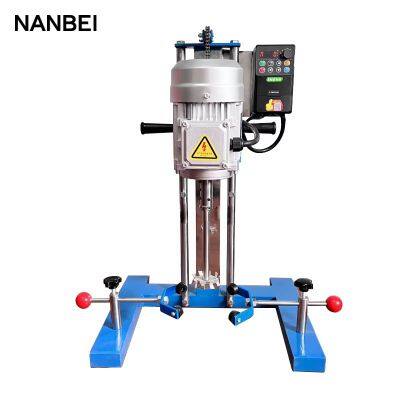

Small Lab Disperser Machine Dissolver Paint Mixer
Instruction:
It can handle the dispersion, fine grinding, mixing and stirring of solid-liquid slurry, achieving functions such as
dispersion, grinding, stirring, and mixing.
NDF is applied in industries such as coatings, inks, color pastes, dyes, pesticides, cosmetics, etc. It can achieve fine
grinding and is widely used in laboratory scientific experiments, production simulation, and new product development,
as well as an ideal experimental equipment for various colleges and research institutions.
Structure :
1. The machine adopts a screw manual lifting mechanism, which can be lifted and lowered freely.
2. Adopt series-excited commutator motor, and implement stepless speed regulation on the motor through intelligent motor speed control instrument.
3. The dispersing impeller and the rotating shaft are directly connected with threads.
4. The barrel is fixed by the gripper
Explosion-proof laboratory disperser: The principle of the structure is that when the explosive gas mixture inside the
circuit explodes due to the influence of sparks or arcs, the circuit shell will not be damaged, and the heat energy
generated by this will not be smooth. Diffusion explosion is carried out outward, and there is a small gap along the
outer shell with sufficient connection length, and it is slowly made to the outer shell, and the instantaneous
temperature of the gas transmitted to the outer shell is not enough to ignite the explosive temperature of the
outside world. mixture, i.e. will not cause an explosion.
Specification
Model
| NDF-370
|
Speed controller
| CPU digital display stepless speed regulation,frequency speed control
|
Motor power
| 400W
|
Voltage
| 220V/50HZ
|
Speed
| 0-3000rpm
|
Disperser disc diameter
| Φ 50 Φ 60 disks, one each
|
Contact material
| SUS304
|
Lifting type
| Manuel
|
Lifting stroke
| 250mm
|
Process capacity
| 0.3-1.5L/0.3-3L/O.3L-5L batch
|
Weight
| 27kg
|
Dimension
| 425*425*700mm
|
>>
