Air bubble packaging machine

Product Details

Product Description

Product Description

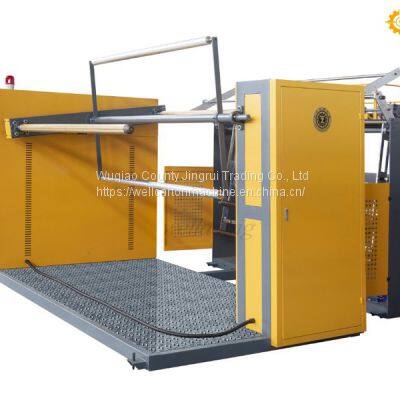

EPE air bubble film machine is mainly composed of seven main components: extruder, vacuum bubble forming mechanism, point breaking mechanism, waste collection mechanism, and electrical control system. It is a mechatronic product that realizes automatic control of raw materials from the feeding port to the finished product winding.
The bubble (PAD) film machine unit adopts one-time forming process, which is the company's extensive absorption of advanced technology at home and abroad, and can continuously produce polyethylene composite bubble (PAD) film through a large number of production practice, development and design on the original ordinary equipment. The machine structure design is scientific, practical and reasonable. Composite polyethylene bubble film (PAD) film unit is one of the company's main products, which has passed CE certification.

Model	PL-1000	PL-1200	PL-1500	PL-2000
Screw diameter	φ60mm	φ65mm	φ75mm	φ90mm
Screw L/D	30:1	30:1	30:1	30:1
Film width	1000mm	1200mm	1500mm	2000mm
Max. output	50kg/h	66kg/h	80kg/h	100kg/h
Extruder power	15kw	15kw	18.5kw	37kw
Total power	28kw	38kw	50kw	80kw
Power supply	380V, 50 Hz, 3 phases (customizable)
Weight	4000kg	4200kg	4500kg	7000kg
Dimensions (L*W*H)	9*3.5*2.5m	9.5*3.8*2.5m	10*4*2.8m	11.5*4.8*4m

Packaging and Transportation:
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo ink printer slotter die cutter machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,automatic partition assembler insert machine, paper tube making machine, flexo ink printing wastewater treatment machine and so on.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 13303078975

---
