Tongjia 1000L 2000L 3000L Plastic Large Container Drum Tank Blow Molding Machine

Product Description

Product Description

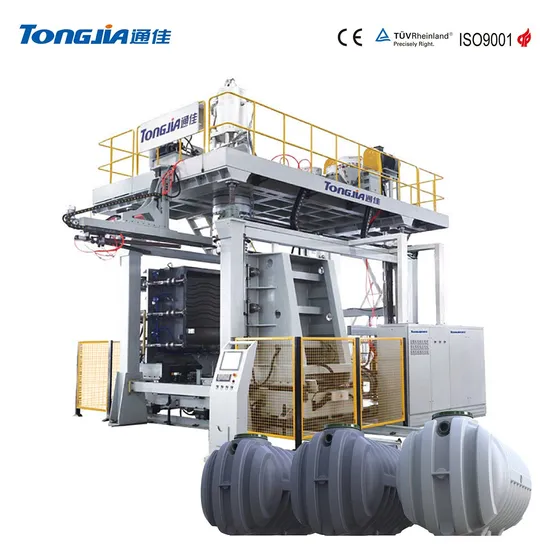

Tongjia TJ-KB1000L-5000L series hollow blow molding machine is a blow molding machine developed for 200L-5000L civilian barrels,water storage tanks, and septic tanks. The major advantage of this series of blow molding machines is that they can process polymer materials. Ethylene, under the premise of lighter weight than similar products, has higher strength than similar products. This series of hollow blow molding machines can be equipped with 2-5 layers of composite storage die according to the requirements of different products.
This series of blow molding machine adopts fixed mold opening and closing, two tie rod structure, and the mold moving system can be moved as a whole to facilitate mold change. The clamping mechanism adopts hydraulic insert plate clamping, and the clamping cylinder adopts large area and small stroke to ensure the clamping force and stability, thus making the operation of the whole machine more stable.

Configuration
Clamping system	Diagonal double tie bar center clamping bi-directional synchronous high precision linear guideway clamping device
Extrusion system	AC speed control + Hardened face gear reducer
Die system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve +hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )

Parameters
Specifications	Units	TJ-KB1000L	TJ-KB1500L	TJ-KB2000L	TJ-KB3000L	TJ-KB5000L
Material		HDPE	HDPE	HDPE	HDPE	HDPE
Max.product capacity	L	1000	1500	2000	3000	5000
Die head layer	Set	1.2 3.4	1.2 3.4	1.2 3.4	1.2 3.4	1.2 3.4
Machine dimension	M	8.2x6.0x6.0	8.5x7.3x7 2	11.7x8.5x7.5	11.7x8.5x8.0	11.0x8.0x8.0
Machine weight	Ton	38	48	55	68	85
Die-head
Accumulatorcapacity	L	30-60	70	60-100	80-140	80-200
Max.diameter of die	mm	600	600	600	800	820
Die head heating power	KW	54-64	80	80.8-120	129-167	129-189
Die head heating zone quantity	zone	5	5	5-6	5-6	5-6
Clamping Unit
Clamping force	KN	800	1800	1800	2200	3600
Distance between platens	mm	800-2400	1200-2800	1000-3000	1200-3400	1600-4000
Mold platen size	mm	1500x1600	1600x1900	1800x2200	1800x2600	2200x2800
Extruder unit
Screw diameter	mm	120	135	150	150	135X2
Screw L/D ratio	L/D	30	32	30	30	32
HMWHDPE plasticizing amount	Kg/h	380	400	500	500	400x2
Screw heating zone quantity	zone	6	6	6	6	6x2
Screw heating power	KW	36	41	64	64	41x2
Extruder driving power	KW	132	160	200	200	160X2
Power
Total power consumption	KW	275-285	334	397-436	465-504	600-660
Hydraulic drive power	KW	45 + 7.5	45 + 7.5	45 + 7.5	65+7.5	37 + 24 + 7.5
Cooling water consumption	m3/h	30	40	40	45	50
Cooling water pressure	Mpa	0 3-0.6	0 3-0.6	0 3-0.6	0 3-0.6	0 3-0.6
Air pressure	Mpa	1	1	1	1	1
Air consumption	m3/min	3	3	4	5	5

About us
Series of automatic blow molding machine include: extrusion blow molding machine,plastic bottling blow molding machine,daily chemical packaging blow molder, lubricant oil blow molding machinery, pharmaceutical / medicine bottle blow moulding machine, food packaging bottle blow molding equipment, pesticide bottle blow molder machine, plastic stacking barrel blow molding machine, large hollow blow molding equipment and special-shaped hollow molding machine etc.
Shandong Tongjia Machinery Co., LTD,located in High-New Technology Industry Development Zone of Jining City, Shandong Province. We are a science, industry and trade integration modern large enterprise group, one of the largest professional manufacturer of plastic machinery in China, Vice President of China Plastics Machinery Industry Association, Vice President of China plastics Processing Industry Association, the National Key High-Tech Enterprises and Chinese Patent Star Enterprise.
With the mind of "Trust comes from quality" , Tongjia group with strong comprehensive strength, exquisite technology, perfect after-sale service system, as always, is willing to make progress together with customers from domestic and overseas to create new glories.
After Sales Service
1. 12 Hours----We will give you reply within 12 hours.
2. Pre-sale service----We provide your professional service in fluent English.
3. Delivery----1~3 months.
4. Free Design----Professional engineers, free designs.
5. Certificates----The third-party verification service provider.
6. After sales service----OEM service provide; Design service provide; Buyer label provided.
Packaging & Shipping
Standard export packaging: 1. Apply anti-rust oil to the equipment easy rusty part and carry out anti-rust treatment.
2. The whole machine was wrapped with stretch film for protection, and the equipment control cabinetand other components are protected against shock with packaging materials like XPS foam board and EPE foam sheet.
3. Reinforce easy-move part of the equipment.
4. Put desiccant before packaging to avoid rusting equipment during sea transportation.
5. Use New Zealand imported bluish pine wood or American Douglas fir wood as the bottom support 12mm multi-layer plywood for side panels, all wood fumigated. We cooperated with experienced andprofessional exported wooden packaging manufacturing enterprises to make final package.
FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still
can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
