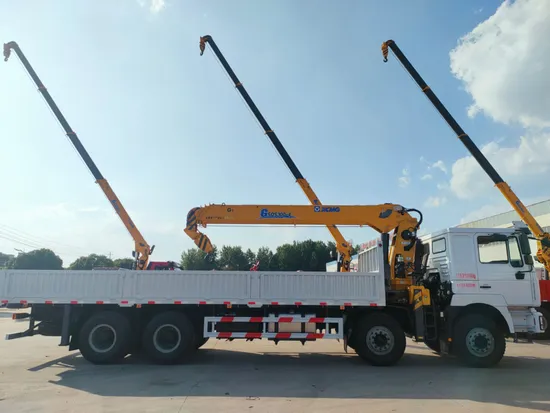

High Quality Heavy Duty Sinotruk HOWO Shacman X6000 F3000 6*4 8*4 Cargo Truck 6.3tons 8tons Cranes Mounted Telescopic Crane Truck with Construction Equipment

Product Description

Product Description

External chassis	Dongfeng Huashen F5 (Euro VI)	Maximum lifting height	21.8 m
Dimensions	12000*2500*3850	Maximum lifting torque	30T*M
Inner dimensions of cargo compartment	8500*2400*550	Basic arm length	5.6-18.8m
Wheelbase	5900+1350mm	Maximum lifting weight	12000kg
Gross mass	25000kg	Hydraulic outriggers	Automatic (double-chamber rear outriggers)
Curb mass	16230kg	Boom telescopic	Retractable rod rope
Rated load	8575kg	Boom extension method	Dual cylinder boom extension
Gearbox model	Fatu 8-speed gearbox	Maximum elevation angle	0-75°
Engine model	Yuchai	Slewing angle	360° full slewing
Engine power	199KW (270 horsepower)	Slewing speed	2.5
Frame	300 three-layer	Boom	5 meters*5 sections (U-shaped boom)
Axle load	Front axle 7T rear axle 18T	Span of the whole machine	2.5m*5.8m
Maximum speed	90KW/h	Tire model	1100R20-18PR
Refrigeration system	Air conditioning	Dual pump confluence	Aluminum alloy hydraulic oil tank

Assembly configuration: air conditioner for getting on the vehicle, air conditioner for getting off the vehicle, weighing device, torque limiter, wireless camera, hanging basket, air cushion seat. Product features: with center swivel, the turntable can rotate 360° at any angle, equipped with planetary reduction mechanism, faster and smoother rotation, equipped with hydraulic cooling system, lower oil temperature, improve efficiency, high and low speed driving, steering wheel power, air brake, driving the vehicle is easier and more flexible. Company Profile Packaging & Shipping FAQ Q1: Are you a trader or a manufacturer? A1: We are manufacturers. We have exhibition rooms, truck maintenance workshops and professional workers for sale. Q2: How to do after-sales service? A2: We will give video guidance by phone or computer. You can tell our sales staff about any use problems, and we will give you guidance. Q3: What is the transportation process? A3: For the field of trucks, most of the services we use are bulk shipping services. Q4: May I visit your factory? A4: Welcome to visit our seminar. We are located in Shandong and prefer face-to-face conversation. Question 5: What kind of payment terms do you offer? A5: We can do TT, LC, 50% in advance and 50% before shipment.

---
