Popular Pressure Transmitter for General Industry

Product Description

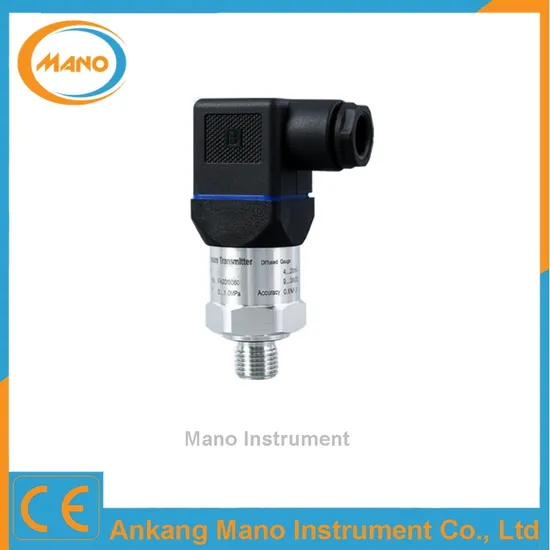

Product Description MNP-10 pressure transmitter is compactly designed and used a reliable silicon piezoresistive pressure sensor. After temperature compensation and digital circuit signal conditioning, it can output standard industrial analog signals and is suitable for various pressure monitoring in general industries. Each product has been carefully designed, component selection, process curing, high temperature aging, environmental simulation testing and other processes to ensure that each product is stable and reliable.
Applications
1.Marine Industry
2.Water Treatment
3.Pump & Compressor
4.Refrigerating System
5.Mechanical Equipment
6.Measurement & Control
7.Hydraulic Pressure & Pneumatic Device
Features
1.Compact size, easy to install
2.Full range coverage
3.High stability, low drift
4.Various structures to choose from
5.Can be used in various industrial occasions, strong versatility
Description

Range	-0.1MPa…0kPa~10kPa…30MPa
Pressure Type	Gauge, Absolute, Sealed Gauge Pressure
Output signal (mA)	4~20mA
	0~5V DC(0~10V DC)Three-wire
Accuracy	±0.1% FS (@25ºC)	±0.25% FS (@25ºC)	±0.5% FS (@25ºC)
Non-linearity (FS%)	≤0.1	≤0.2	≤0.4
Hysteresis, repeatability (FS%)	≤0.05	≤0.05	≤0.1
Zero point temperature drift (%FS/ºC)	≤0.015	≤0.03	≤0.05
Long-term stability (%FS/year)	≤0.1	≤0.2	≤0.5
Working voltage (V DC)	+15~+30 (calibrated value is +24)
Compensation temperature (ºC)	0~+50(≤200kPa); -10ºC~70ºC(>200kPa)
Working temperature (ºC)	-40~+85ºC
Overload capacity (%)	≤200(<10MPa );≤150(≥100MPa)
Load resistance (Ω)	R=(U-12.5)/0.02-RD Remark: U is the power supply voltage, RD is the cable internal resistance
Response time (10%~90%)ms	≤1ms
Measurement medium	Fluids compatible with 316L or ceramic
Isolated Diaphragm	SS 316L
Pressure Port	SS 316L
Non-wetted Parts Housing	SS 316L
Protection Rating	IP65 (IP68 customized)

Detailed Photos
Company Profile
FAQ Q:Do you have MOQ?
A:We don't have MOQ
Q:Can you supply OEM, ODM services?
A:Yes, we can provide OEM for our products, and for some of the products, we provide ODM.
Q:Can we check and confirm the dial plate before production?
A:Yes, for customized products, we can send you the dial plate pic for your checking and confirming before production.
Q:What is your packing for export products?
A:(1)For pressure gauge, thermometer, Pressure Transmitter, we usually use neutral box with neutral carton.
(2)For digital pressure gauge, we usually use plastic seal and box, with neutral carton.
(3)For pressure calibrator, comparator pump, we usually use box with carton or wooden box.
Q:The quality of your products.
A:Our products are strictly following international measurement and calibration standards. And all products are with 100% inspected by skilled workers.
Q:What is our payment terms?
A:For sample or trial orders, we can use West Union and PayPal, TT etc. For large orders, we accept TT, LC or other payment terms after negotiation.
Q:What is your shipping way?
A:Sea transport, train transport, air transport or express like DHL, UPS, TNT, FEDEX etc. are all available for us. We will choose the best way according products and your requirements.
Q:Can you provide us sample? Is it for free?
A:Yes, we are very willing to provide you samples. For products lower than 10USD, we can send the free sample for you.
Q:How long is your product warranty?
A:You can enjoy free warranty service for products withinone year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
Options
"HOW TO ORDER" SEQUENCE
Model /Nominal size / Scale range / Thread size / Process connection / Options

---
