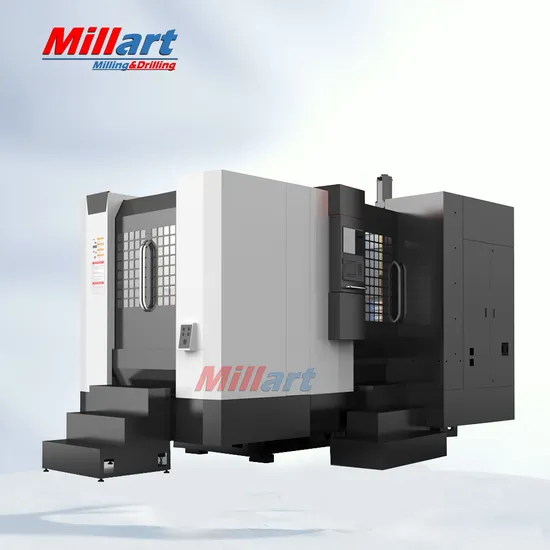

Hmc Q80s Q80s/1 Q80s/2 Q80s/3, CNC Horizontal Machining Center

Product Description

Product Description
1.HMC Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work
pieces for automobile, shipbuilding, engine and general manufacturing industries.
2. The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration
and rapid response rates.
3. The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle
cooling system provide superb capability for flexible manufacturing.
4. High-speed High-power Spindle;
5. Compact Configuration and Unrivaled rigidity;
6. High-speed ATC;
7. CE Standard and CE Certificate;

Product Parameters

	Specification	Q80S	Q80S/1	Q80S/2	Q80S/3
		Single table	Double table	Continuous indexing single table	Continuous indexing double table
Worktable	Worktable size	800×800mm	800×800mm	800×800mm	800×800mm
	Worktable number	1	2	1	2
	Worktable indexing	1°X360	1°X360	0.001°	0.001°
	Worktable transmission	240	240	160	160
	Worktable loading capacity	1500kg	1500kg	1500kg	1500kg
Travel	Worktable movement left and right(X Axis)	1100mm	1100mm	1100mm	1100mm
	Spindle head movement up and down(Y Axis)	850mm	850mm	850mm	850mm
	Column movement forward and backward(Z Axis)	900mm	900mm	900mm	900mm
	Distance from spindle center to worktable surface	100~950mm	0~850mm	100~950mm	0~850mm
	Distance from spindle nose to worktable center	180~1080mm	180~1080mm	180~1080mm	180~1080mm
Spindle (Taiwan)	Max. Spindle speed	6000rpm	6000rpm	6000rpm	6000rpm
	Spindle taper	BT50-190	BT50-190	BT50-190	BT50-190
	ATC	24 (30/40)	24 (30/40)	24 (30/40)	24 (30/40)
Motor	Spindle motor	15kw	15kw	15kw	15kw
	X,Y,Z axis servo motor	30/30/30 Nm	30/30/30 Nm	30/30/30 Nm	30/30/30 Nm
	B axis servo motor	12N.m	12N.m	22N.m	22N.m
	APC servo motor	/	22N.m	/	22N.m
Leadscrew (Taiwan)	X/Y/Z(Diameter×Pitch)	45×12/45×12/50×12	45×12/45×12/50×12	45×12/45×12/50×12	45×12/45×12/50×12
Rapid speed	X/Y/Z	24m/min	24m/min	24m/min	24m/min
	B axis	10r/min	10r/min	10r/min	10r/min
Positioning accuracy	X/Y/Z	0.012	0.012	0.012	0.012
	B axis	12″	12″	15″	15″
Repositioning accuracy	X/Y/Z	0.008	0.008	0.008	0.008
	B axis	6″	6″	10″	10″
Machine overall dimensions		3500×3000×2700	5500×3000×2700	3500×3000×2700	5500×3000×2700
Machine net weight		12000kg	14000kg	12000kg	14000kg

Standard accessories: Fanuc 0i MF (5) control system
24 Tool disc type ATC
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Tri-color indication lamp
Heat exchanger cooling fans in cabinet
Automatic chip conveyor
Optional accessories:
Oil skimmer
Nitrogen balance system
CTS 20bar
CTS 30bar
Spindle oil chiler
30 Tool disc type ATC
Chain type 40 tools ATC from Taiwan
Air conditioner in cabinet

Company Profile
Packaging & Shipping

FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
