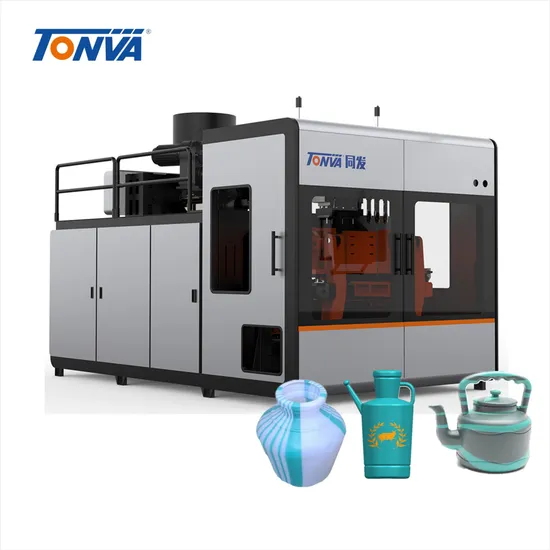

Tonva Making 3-Color 3L Africa Plastic Water Pot Extrusion Blow Molding Machine

Product Description

Products Description 1. Double stations, single die-head; 2. single layer with 3-color, suitable for HDPE material;
3. Hydraulic/ Hybrid/ Electric driven for option;
4. Two platens with arm toggle clamping structure, liner guide way for clamping and moving;
5. With lubrication system;
6. Power supply: 380v/50hz/3ph (depending on clients requests);
7. Fully automatic design to save labor cost.
8. Optional for MOOG 100 points parison controller;
9. Optional for multi-layers;
10. Suitable for making all kinds of water bottles/ tanks/ barrels/ canisters/ jugs/ jars;
Main Configuration
* Screw: specially designed based on material's trait, high quality nitriding steel 38CrMoAl, with nitriding surface HV≥800, brittleness≤2; * Barrel: high quality nitriding steel 38CrMoAlA, with nitriding surface HV≥900,brittleness≤2;

* Drive Mode: inverter and hard gear surface decelerator;

* Temperature Controlling: automatic temperature control model;

* Cooling Mode: adopting water cooler for the processing zone, fan cooler for the rest zones;

* Die-head System: the melting plastic out of the extrusion system is divided through the core parts of die-head, distributed by the die-head channel to become several shaped sections;

* Clamping System: fixed clamping system, double tie-bar, single cylinder clamping wider space for the mould, installing and dismantling the mould easily, linear roll guide rail;

* PLC + HMI: adopting PLC to control the action program of the whole machine; adopting HMI for communication, parameter setting, modification and picture display; every parameter could be set and modified directly with the complete obstacle self-diagnosing function, menu operated directly and conveniently;
Application
Our Company
Our Customers
Our Service
* 24-hour response by email or telephone;* Full production line available;* OEM and ODM service provided;* Technical support online service provided;* On-site training and installation service provided;* Spare parts replacement and repair service provided;* Constant back-up support service;* Consultancy solutions for plastic products from new start-up business to large group.
Contacts

Contact Person	Ms. Miranda
	+86 189 5867 4345

---
