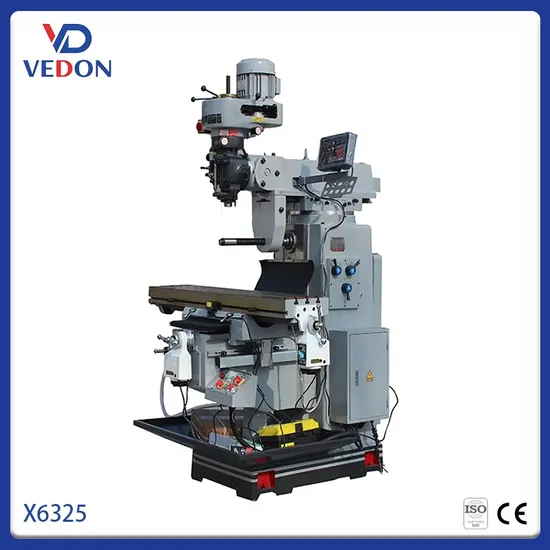

High Rigid Medium 3 Axis Metal Universal Turret Milling Machine Milling and Drilling Machine X6325c/X6325D Turret Milling Machine

Product Description

Product Description
X6325 - Rectangular guideways on Y, Z axes with good rigidity,
X6323A - Dovetail guideways on Y, Z axes,
X6325B - Rectangular guideway on Y axis, and dovetail guideway on Z axis,
Hardened and ground table surface and guideways with precision ground,
Milling head adopts 3HP motor, 16 steps speed pulley head, variable speed head is optional.
Product Parameters

Model	X6325C	X6325D
Table size	254×1270 (10″X50″)	254×1270 (10″X50″)
Table longitudinal travel	850mm	950mm
Cross travel	400mm	400mm
Vertical travel	420mm	420mm
T-slot Number/Width	3-16mm	3-16mm
Ram travel	470mm	470mm
Distance from spindle nose to table surface	0~405mm	0~405mm
Distance from spindle center to column	140~609mm	140~609mm
Spindle taper	ISO40	ISO40
Spindle travel	127mm	127mm
Spindle speed	50HZ: 65~4500rpm 60HZ: 80~5440rpm	50HZ: 65~4500rpm 60HZ: 80~5440rpm
Spindle feed	0.04 ( 0.0015″ ) / 0.08 ( 0.003″ ) / 0.15 ( 0.006″ ) mm/revolution	0.04 ( 0.0015″ ) / 0.08 ( 0.003″ ) / 0.15 ( 0.006″ ) mm/revolution
Spindle motor power	3.75KW / 5PH	3.75KW / 5PH
Head swivel	90°	90°
one miller per case	1516×1550×2080mm	1516×1550×2080mm
two miller per case	1650×1750×2170mm	1650×1750×2170mm
three miller per case	1650×2285×2235mm	1650×2285×2235mm
Machine weight	1590kg	1590kg

Detailed Photos
At Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
