CNC Lathe Machine Horizontal Heavy Duty Metal Precision Tck6350 Tck6340 Tck6336

Product Description

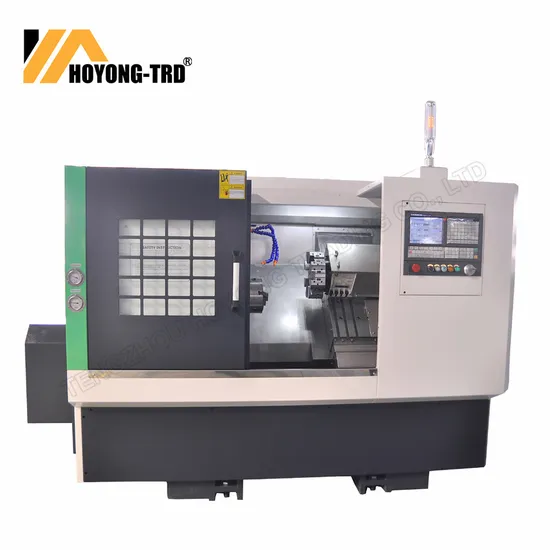

SLANT BED LATHE MACHINE
This machine is suitable for automobile, motorcycle, electron. Aerospace, military, oil and other industries. For rotary parts of conical surface, circular arc surface, surface and various inch screw thread, volume, high, high precision automatic processing by 45 degrees high rigidity of the whole bed, large torque of the spindle, the Taiwan rail line, ensure that the machine is high rigidity, near the center of the spindle operator, work piece loading and unloading more convenient.
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
STANDARD ACCESSORIES
hydraulic 6" chuck
8 station tool turret
6" hydraulic cylinder
Taiwan Hiwin linear guideways
spindle unite 4500 rpm
SPECIFICATIONS:

CNC MACHINERY	TCK6350	TCK6340	TCK6336(S)
Max. swing over bed	520mm	400mm	390mm
max. swing over slide	220mm	120mm	130mm
Max turning length	330mm with turret, 410mm with gang tool	300mm	200(400)mm
X axis	500mm	380mm	400mm
Z axis	500mm	350mm	300(500)mm
Guideway	Taiwan Hiwin Linear	Taiwan Hiwin Linear	Taiwan Hiwin Linear
Spindle speed	3000 rpm	3500 rpm	4000/3500 rpm
Spindle bore	66 mm	56 mm	48/56 mm
Max. Bar capacity	55 mm	45 mm	40/45 mm
Rapid traverse	18m/min	18m/min	18m/min
Main motor	7.5/11KW	5.5KW	3.7/5.5KW
Tools	Gang tool, 8-tool hydraulic turret	Gang tool, 8-tool hydraulic turret	Gang tool, 8-tool hydraulic turret
x/z position accuracy	0.02mm	0.016mm	0.016mm
x/z re-positioning	0.006 mm	0.006	0.006mm
machine dimension	2550*1400*1710mm	2500*1340*1710mm	2200*1340*1710mm 2500*1340*1710mm
Weight	2900kg	2500kg	2200(2500)kg

---
