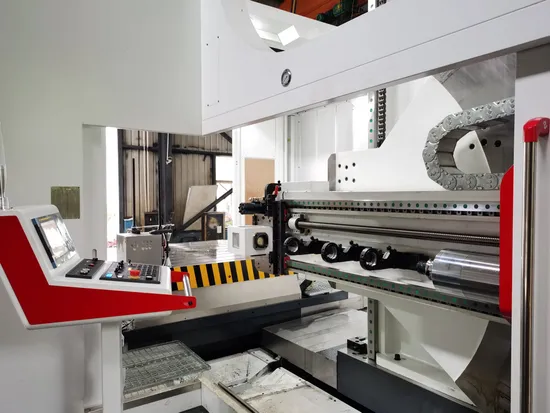

CNC Deep Hole Drilling Machine with Milling for Mould Making (ZJR15-3017)

Product Description

ZJR series CNC deep-hole drilling machine is automatic and multifunctional, majoring in deep-hole drilling and cutting, while milling function is also professional. With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.
1.FANUC 0i -MD CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.
2.FANUC servo motor for six coordinate axis and main axis: good characteristic and perfect low speed performance.
3.With high-precision ball screw bar and rolling linear guide, the operating components make positioning accurately.
4.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.
5.ZJR series CNC deep-hole drilling machine is mainly used for extremely difficult processes of deep-hole in mold industry. It's spoken highly of its high-efficiency, low-cost, humanized technological process.
ZJR
Technical Specifications of
ZJR Series Six-Axis CNC Deep-hole Drilling Machine Tool

Items		ZJR10-1210		ZJR15-2315	ZJR15-3017
Processing Capacity	Diameter of the Hole for Gun Drill	3~30 mm		3~35 mm	3~35 mm
	Maximum Depth of the Hole for Gun Drill	1000 mm		1500 mm	1500 mm
Processing Range	(X)Processing Range (from Left to Right) of the Working Table	1200 mm		2300 mm	3000 mm
	(Y) Processing Range of Sliding Table	1000 mm		1500 mm	1700 mm
	(Z) Processing Range of Column	500 mm		800 mm	800 mm
	(A)The Rotary Angle of Ram	15, 25The Main Axis Turns upward 15 degrees, and down to 25 degrees
Main Axis	Taper Hole of Main Axis	BT40		BT50
	Maximum Speed of Main Axis	4500 rpm
Power	Main Axis Motor	7.5 kw/11 kw		18.5 kw
	X X Axis Servo Motor	22 N.m		30 N.m	40 N.m
	Y Y Axis Servo Motor	30 N.m			40 N.m
	Z Z Axis Servo Motor	30 N.m			40 N.m
	W W Axis Servo Motor	12 N.m		30 N.m
	A A Axis Servo Motor	22 N.m
	B B Axis Servo Motor	30 N.m		40N.m	40 N.m
	Total Power	65kw		75 kw	80 kw
CNC Index Table	Burdening	5 ton		15 ton	20 ton
	(×)Measurement	1000×1000 mm		1600×1800 mm	2200×2400 mm
Cooling System	()Pressure Range of Cooling Liquid	2~15 MPa(Set 2~9 MPa)
	()Flux of Cooling Liquid	6~85 L/min
Measurement & Weight	(×)Floor Area of Machine Tool(Length*Width)	6500×5500 mm		8300×7300 mm	9500×8200 mm
	Maximum Height of Machine Tool	3000 mm		4000 mm	5300 mm
	Wight of Machine Tool	16ton		30 ton	50 ton
System	CNC System	FANUC 0i-MD
Milling Function	Milling Range	1400mm	1900mm

Due to the continuous improvement of products, specifications and pictures are for reference only. For details, please visit our website: http://zonjet.en.made-in-china.com

---
