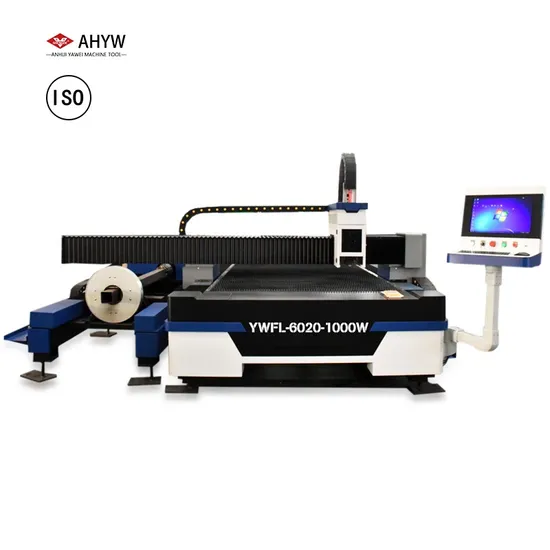

Ywfl 3000W 6000W 12000W Fiber Laser Sheet Metal and Tube Cutting Machine

Product Description

Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

AHYW Sheet Metal Fiber Laser Cutting Machine With Shuttle Table And Cover
Product Description
Advantage of Metal Sheet and Pipes Fiber Laser Cutter 1. Fiber laser cutter with tube cutting and metal sheet cutting process combination save cost and space. 2. A "clean cut" surface quality is obtained.
3. Reflective materials like aluminium, copper and brass can be cut with ease.
4. Available for different
diameter and length tubes from 20mm-200mm.
5. Little to maintenance costs.
6. The lifetime is over 100,000 working hours.
7. Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
Detailed Images
Laser Source Options
Raycus Max nLIGHT IPG
Applications

Application Material

Application Industries

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube), Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Technical Parameters

Machine model	YWFL-6020
Laser wavelength	1064-1090nm
Beam quality	M2 1.3, TEM00
Laser average power	10-750W
Water chiller power	3.8kW
X and Y axis working area	2000 x 6000
Consumption parts	Water, lens,auxiliary gas(N2/O2/compressed air)
Z axis movement length	100mm
X and Y location accuracy	+/-0.02mm
X and Y axis repeat location accuracy	+/-0.02mm
X and Y axis moving speed	23m/min
X and Y max cutting speed	15m/min
Min cutting width	0.05mm
Guider	Red pointer
Shielding gas form	coaxial
Control system	Bochu Fiber laser cuttings sysem
File format	DXF/PLT/AI
Driver	Controlled by servo motor
Continuously working time	suggest≤16H(available working 24 hours)
Max cutting speed(common steel)	depends on material type&thickness
Applicable cutting materials	Stainless steel, carbon steel and galvanized Sheet/Pipe
Voltage needed	Specific according to final user

Company Profile
Facilities & EquipmentService
Pre-Sales Service Technical and Sales team work After-Sales Service Engineers and Sales cooperate • Inquiry and consulting support. • Training how to install the machine, and how to use
• Suggest solution. the machine.
• View our Factory. • Engineers available to service machinery overseas. FAQ Q1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 40 years of manufacturing experience, and our products were exported to more than 100 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time??
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.

---
