Crank Shedding Air Jet Loom High Quality Textile Machinery

Product Description

The rigidity of the frame and beam of the FA9100 loom is strengthened, the whole machine has good stability, the beating mechanism is further optimized, the structure is more reasonable, and four connecting rods or six connecting rods can be used to beat the weft. When using six links to beat weft, it can extend the opening time of warp yarn, facilitate weft insertion, and is more suitable for weaving wide-width loom fabric, and broadens the weaving scope of looms.
The shedding mechanism of the FA9100 model is optional: crank shedding, cam shedding, electronic dobby and jacquard, with electronic let-off, electronic take-up, and weft changing dense weaving function; broken warp self stopping, double weft detection electronic measurement, electronic weft, stranded edge yarn detection and weft cating yarn inspection are all controlled by electronic control so that the operation is more humanized.

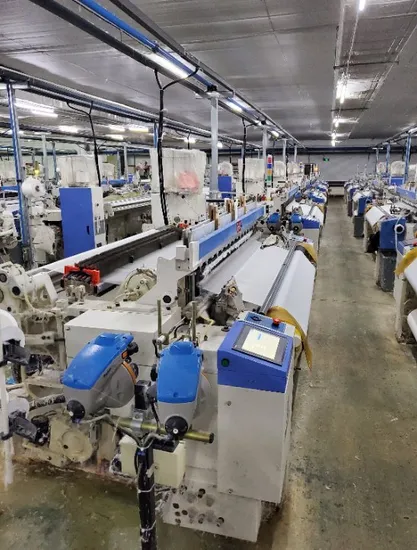

Detailed Photos
Packaging & Shipping

Product Parameters

item			specifications		spare parts
Reed Width		Nominal Reed Space(CM)	150,170,190,210,230,260,280,300,320,340,360
		Useful reed space(CM)	Norminal R/S:0-60cm(150-250cm),0-80cm(>280cm)
Working Range			Short yarn:me100-ne2.5 Filament:22dtex-1350dtex
Weft Selection			1.2.4 or 6 color
Motor		Start Mode	Start motor at high speed
			Push-button start,stop,f/r slow move
			Push-button switch handed
		Power	2.8Kw,3.0Kw,3.8Kw,4.5Kw
Weft Insertion		Method	Main nozzle+swing nozzle+sub nozzle+abnormity lock		Weft brake
		Control	Import High-frequency solenoid valve,computer program control
		supporting spray solenoid vavle	Supporting spray solenoid valve integrated with flow cavity
		Measuring weft storage	Electric control loop separate weft storage		Ballooning Prevention Device
Beating		Beating-Up Motion	Double side tank oil-bath type four-bar beating-up motion
			Multi-sleysword solid beating-up warp and weft system
			Multi supporting base,balance weight
Shedding			Crank type flat sheddingg(heald frame 4 to 8);1/1 fabric
			Down positive Cam shedding(heald frame 4 to 14);Plain,twill,satin,black out babric
			Dobby shedding(heald frame 16 max);Plain,twill,satin or complex design
			Electronic Jaquard shedding:1344,2688 lifting hooks
Let off			Electric servo continuous let-off		Double-warp beam
			Twin back beam
			Positive or negative let off
		flang Dia	Φ800mm		Φ1000mm
Take up		Batching Method	Mechanical continuous take-up		Electric servo continuous take-up
		Batching Method	Entrails batching(Max dia:1000mm)
		Temple	Lower or upper
Selvage			Leno yarn by planetary gears
lubrication			For main driving parts:oil-bath type,centralized filling oil(grease)
Shutdown device		Weft breakage	Reflecting double feeler device
		Warp breakage	Electric warp stop device
		others	Selvage,yarn end treatment,end-broken stop motion
		Shutdown display	Screen display,multi-functional shutdown display lights
Weft cutter			Mechanical cutter
Electric control system			High deficiency,large screen,vga color image display touch human-computer interface

Company Profile
QINGDAO FANHUA INDUSTRY CO, LTD has progressively become the world's leading manufacturer of textile weaving technologies, providing professional weaving looms-water jet loom, air jet loom,velvet looms, etc.
We serve the global market with exceptional machinery for high speed water jet looms, high speed air jet looms, velvet looms, etc. Products are mainly sold to India, Pakistan, Vietnam, Indonesia, Turkey, Uzbekistan, Brazil, and other countries. There are sales and after-sales service centers in India and Indonesia.
We have professional engineers, production team and after-sales service, and constantly update and upgrade our looms to create our own unique technical features.
FAQ
1. Are you manufacturer: Yes, we are manufacturer of water jet loom, air jet loom, rapier looms,twisting machine,etc. textile weaving looms. And at present we also increased the mask making machines series lines.
2. Do you attend the exhibition every year?
Yes, we attend the india, indonesia,Parkistan,shanghai china,Uzbekistan,Turkey etc.textile exhibition every year.
3. Do you have office in foreign market? Yes,we have office in suzhou,china; in india, in indonesia, welcome to visit us.
4. What is the delivery time?
We can deliver the looms within one month 300 sets.
5. Do you already register in India government?
Yes, already become the member of ATUFS india.
6. Do you have aftersales team?
Yes, we will arrange the after sales teams on the door when delivered the looms on your side. Any problems of prompt time is within in 2 hours.

---
