Flat Toneable Unit Tube Mini Locatable Electric Hybrid Flat Optical Fiber Cable with Factory Price

Product Description

Product Description

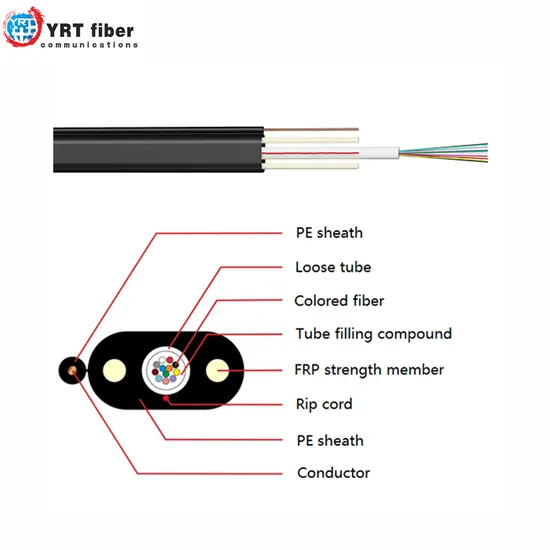

Outdoor Flat Toneable Unit Tube MINI Locatable Electric Hybrid Flat Optical Fiber Cable
Compact, Durable and Flexible Fiber Optic Cable for the Last Link in Your Optical FTTx Network
The Mini TB Flat Drop Cable offers an ideal solution for direct routing into living units for the final section of an optical network, especially in a fiber-to-the-premise (FTTx) installation. The riser-rated EZ-Bend subunit allows this cable to be installed directly from the pedestal to the indoor Optical Network Terminal (ONT) with no intermediate termination. This capability helps to save time and money by avoiding splicing and/or termination on the outside or inside wall of a residence. The all-dielectric version of the Mini TB Flat Drop Cable also helps to save money by elliminating the need for expensive bonding or grounding. The excellent tensile strength and crush resistance of the Mini TB Flat Drop Cable make it robust enough for below-grade installation in ducts or open trenches, and also ideal for self-supporting aerial deployments.
Detailed Photos
Product Parameters
Optical Characteristics

		G.652	G.657A	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm
Storage/Operating temperature		-40ºC ~+70ºC
