Product Description
Product Description

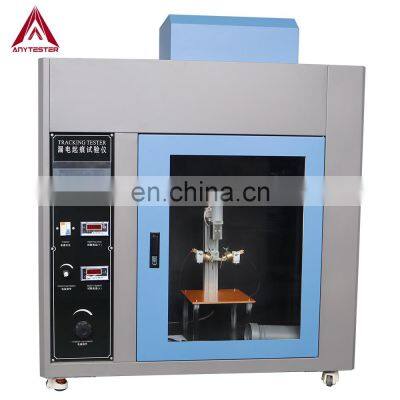

Product DescriptionAT804 Tracking Index Tester is used to test on the insulated material surface, apply certain voltage between size of 2mm×5mmplatinum electrodes for 30 secs, then drip conducting liquid (0.1%NH 4 CL) in the height of 35mm, to test the tracking resistanceof the solid insulated material under humid surrounding and electric field. It can also test CTI and PTI.StandardIEC 60112, 60745-1, 60598-1,GB/T4706.1, 4207, 6553IEC 60884-1,60335-1Technical Specification AT810Electrode size(2mm ± 0.1mm) × (5mm ± 0.1mm) × (40mm ± 5mm),30°±2°Electrode distance4.0mm ± 0.01mmElectrode force1.00N±0.001NTest voltage100V~1000VDroplet height35mm ± 5mm AdjustableDroplet time30s±0.1s AdjustableNumber of droplets1 ～ 9999Test voltage100~1000VTracking adjustment0.50A ±10% 2.00s±10% AlarmExhaust pore sizeΦ100mmDimensions1120×520×1020mmPower supply220V 0.6kVA 50-60HzDetails & Features * Using digital instrument control system, import control components; * Fixture made of high quality stainless steel, corrosion-resistant, no rust; * Tempered glass observation window, the entire test process can be observed Technical Specification: * One-button time device, to facilitate the use of equipment, simple operation; * Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPacking & DeliveryPackagingSize(cm)120 (L) * 80 (W) * 96 (D)Weight130Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance before shipmentCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time30~40 days after receiving payment for one containerRelated Products
>>
