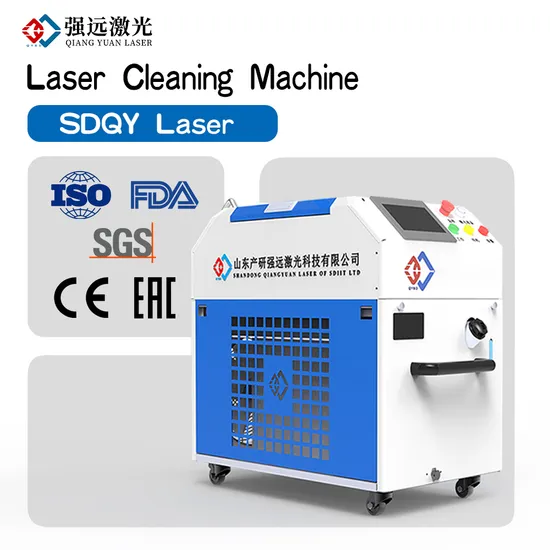

Fiber Laser Cleaner for Rust Removal Laser Cleaning Machine 2000W

Product Description

Fiber Laser Cleaner for Rust Removal Laser Cleaning Machine 2000W
Product Description
Laser cleaning equipment is a new generation of high-tech surface cleaning products. It is easy to install, control, and implement automation. With Simple operation, switching power supply, open the device, then it can be achieved cleaning without chemical reagent, medium and water washing, it has many advantages of the focus adjustment manually, joint surface cleaning, higher cleaning surface cleanliness, it also can remove the surface of resin, grease, stains, dirt, rust, coating, paint on objects.
Aplication material:
Stainless Steel, Carbon Steel, Aluminum, Copper, Galvanized Sheet, Iron, Steel, Nickel Plate, Manganese Plate etc.
The advantages of laser cleaning machine are as follows:
1. High efficiency: Laser cleaning machines use the high energy density of laser beams to quickly and thoroughly remove dirt, rust, paint, oxide layers, and other contaminants. Compared to traditional cleaning methods, laser cleaning machines is faster.
2. Precision: The laser beam can be precisely positioned during cleaning, only removing the area that needs to be treated, and will not cause damage to materials surface.
3. Environmentally friendly: Laser cleaning does not require any chemical cleaning agents or other pollutants, avoiding environmental pollution.
4. Economical: Although the price of a laser cleaning machine is relatively high, operating costs are low in the long term . Because it does not require chemical agents , save labor . it can greatly reduce the cleaning costs of enterprises.
5. Safety: During operation, a laser cleaning machine does not require contact with cleaning materials, reducing the risk of workers coming into contact with chemical pollutants and improving work safety.

Product Parameters

Laser power	1500W	2000W	3000W
Laser type	Continuous (CW)	Continuous (CW)	Continuous (CW)
Laser source brand	Max/Raycus	Max/Raycus	Max/Raycus
Controller	SUP-LCS	SUP-LCS	SUP-LCS
and cleaning head	SUP22C	SUP22C	SUP22C
Cooling type	water cooled	water cooled	water cooled
Water chiller brand	S&A CWFL-1500ANW	S&A CWFL-2000ANW	S&A CWFL-3000ENW
Rated power(kW)	6.6	9.6	12.6
Optical Fiber length (m)	10m ( optional 15m)	10m ( optional 15m)	20m
Power adjustment range(%)	10-100	10-100	10-100
Scan width(mm)	10-150mm for 400mm foucs lens /10-300mm for 800mm focus lens	10-150mm for 400mm foucs lens /10-300mm for 800mm focus lens	10-150mm for 400mm foucs lens /10-300mm for 800mm focus lens
Focal length(mm)	400/800	400/800	400/800
Central wavelength(nm)	1070~1090	1070~1090	1070~1090
Temperature of water	22ºC-26ºC	22ºC-26ºC	22ºC-26ºC
Water of cooling	Distilled water, Plasma water	Distilled water, Plasma water	Distilled water, Plasma water
Cleaning head protective lens	D30*T5	D30*T5	D30*T5
Cleaning head focusing lens	D20*3.5 F400/D20*3.5 F800	D20*3.5 F400/D20*3.5 F800	D20*3.5 F400/D20*3.5 F800
Clean head collimator lens	D20*5 F60	D20*5 F60	D20*5 F60
Voltage	220V±10% single phase	220V±10% single phase	380V,3phase
Cleaning head weight	0.8kgs	0.8kgs	0.8kgs
Machine size	917*490*850mm	1110*490*850mm	1240*510*1140mm
Package size	1090*600*1150mm=0.75CBM	1220*590*1150mm=0.83CBM	1360*650*1460mm=1.29CBM
Net weight of machine	119kgs	145kgs	220kgs
Package weight	152kgs	180kgs	285kgs

Detailed Photos
SUP22C laser cleaning head
Using a hand-held cleaning gun design, it can flexibly respond to various objects and angles.
Easy to operate and portable move.
F400/F800 focus lens
Max scan width 300mm

Max Laser Generator
Max has an efficient and professional R&D and production team, which is the top quality in China.
The lasers have higher electro-optical conversion efficiency, higher and more stable optical quality.
SUPlaser (Gefasst)Controller
Strong compatibility. Compact, easy operation
Maintenance-free, and long service life.
S&A Water Chiller
Specially developed for fiber laser equipment, excellent cooling effect.
Stable and reliable performance, low failure rate, energy efficient.
Packaging & Shipping

Sample
Fiber laser cleaning machine has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials.
Fiber laser cleaning machine can be used to clean metal surface paint rust, clean surface oil, stains, and dirt etc.
Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts,truck frame, machine tools, environmental protection industries and other fields.


After Sales Service
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp,Wechat, Email.

*Engineers available for Face to face video to supply after-sale services.

* Friendly English version manual and operation video on youtube.
Certifications
Company Profile
Shandong Qiangyuan Laser of SDIIT Ltd, with a registered capital of USD 12 million, is a high-tech innovation enterprise focusing on the R&D, production, sales and comprehensive solutions of laser cleaning/welding equipment. The company has a technical innovation team composed of optics, machinery, electronics, computers, materials science and other disciplines. The company has more than 30 core independent intellectual property rights in China and abroad in laser cleaning / welding key core devices, process methods, intelligent control and complete automation solutions.

---
