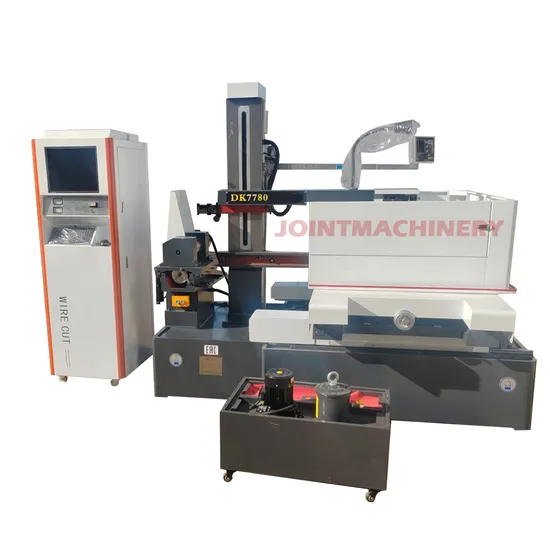

Medium Speed Wire Cut EDM Machine Dk7780 CNC EDM Erosion Machine

Product Description

√ Experience unmatched efficiency with cutting speeds reaching an impressive 90mm. This heralds a new era of productivity in metal fabrication.2/min - that's a staggering 2-3 times faster than conventional medium wire machines, setting a new benchmark in the industry.
√ Delivering exceptional surface smoothness with Ra≤2.5μm, our machine achieves the wire-effect akin to the standard C type, promising quality that stands out.
√ Equipped with state-of-the-art intelligent control cabinets and a comprehensive processing library, mastering the basics of operation is effortlessly simple and intuitive.
√ Offering a perfect blend of superior quality and competitive pricing, it replicates the ordinary C type wire effect, ensuring maximum value for your investment.
Precision CNC Wire Cutting Machine DK7780

Model	Unit	DK7780
Table size	mm	1350*985
Table travel	mm	800*1000
Wire frame span	mm	600
Processing taper	°/mm	6°,15°,30°/80
Max cutting speed	mm2/min	≥90
Optimum processing surface roughness	μm	≤Ra2.5
Electrode diameter	mm	0.10-0.20
Speed of the electrode wire	m/s	11.5
Working liquid		DX-1 DX-4
Processing accuracy		According to GB7926-87 standard
Worktable movement pulse amount		0.001
Machine consumpition power	kw	<1
Max workpiece weight	kg	2000
Net weight	kg	4000
Diemnsion	mm	2600*2400*1800

Detailed Photos

Shenzhen Joint Machinery Co., Ltd. stands at the forefront as a distinguished manufacturer and exporter of advanced CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, and more. Our unwavering commitment is towards delivering machines of unparalleled quality coupled with exceptional service to our global clientele. We are passionate about maintaining and elevating machine quality, ensuring adherence to the pinnacle of industry standards. Our machines integrate cutting-edge core technologies sourced from Taiwan and Germany, combined with the latest production equipment and processes, ensuring superior quality and reliability. Renowned for their outstanding performance in precision, stability, and dependability, our machines adeptly handle complex and high-demand machining requirements. Widely exported, our products have garnered acclaim and popularity worldwide. Our expansive market footprint spans Asia, Europe, South America, North America, and beyond. We cherish long-standing partnerships with diverse customers across the globe, collaboratively creating substantial business value.

---
