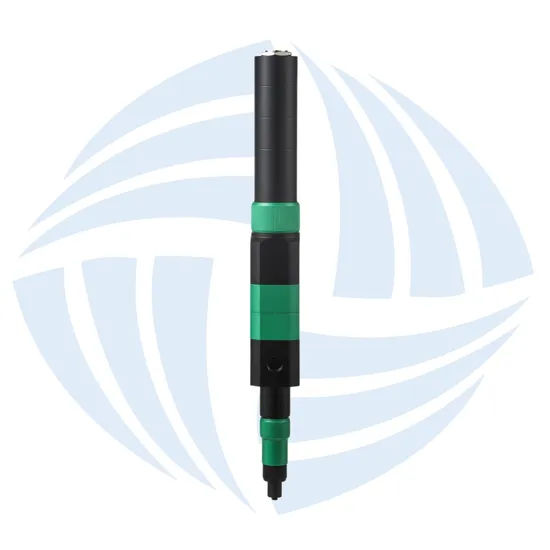

Viscotec Single Dispenser Pump with UV Glue, Single Screw Valve

Product Description

Product Description
Single liquid screw valve is different from screw pump,The quantitative conveying accuracy is extremely high, and the minimum quantitative is 0.001ml (the accuracy is within 1%) and The output flow rate is constant and has no pulsation (repetition accuracy is above 99%), and the glue amount is not affected by the change of medium viscosity, temperature and pressure and other parameters.what's more ,It is suitable for precise and quantitative transportation of various high viscosity media and granular media and can be back suction, completely eliminate drawing, dripping and other phenomena,in the end , the conveying pressure is 16-20Bar, and the modular design is easy to use and clean. Detailed Photos
Product Parameters

Model	LNM0.01CC	LNM0.05CC	LNM0.15CC	LNM0.25CC	LNM0.5CC
Size	Length141mm	Length141mm	Length141mm	Length160mm	Length183mm
Inlet size	English straight screw G1/8	English straight screw G1/8	English straight screw G1/8	English straight screw G1/4	English straight screw G1/4
Pressure range	0-6 bar	0-6 bar	0-6 bar	0-6 bar	0-6 bar
Max pressure range	0-10 bar	0-10 bar	0-10 bar	0-10 bar	0-10 bar
Max output pressure	0-20 bar	0-20 bar	0-20 bar	0-20 bar	0-20 bar
Viscosity range	0-500000CPS	0-500000CPS	0-500000CPS	0-500000CPS	0-500000CPS
Flowing part	Aviation Aluminium	Aviation Aluminium	Aviation Aluminium	Aviation Aluminium	Aviation Aluminium
Sealing form	Shaft seal	Shaft seal	Shaft seal	Shaft seal	Shaft seal
Static sealing ring	FKM or PTFE	FKM or PTFE	FKM or PTFE	FKM or PTFE	FKM or PTFE
Speed range reference	0-120Rpm/min	0-120Rpm/min	0-120Rpm/min	0-120Rpm/min	0-120Rpm/min
Operating environment	5-40ºC	5-40ºC	5-40ºC	5-40ºC	5-40ºC
Medium temperature	10-80ºC	10-80ºC	10-80ºC	10-80ºC	10-80ºC
Storage conditions	Dry/dust-free	Dry/dust-free	Dry/dust-free	Dry/dust-free	Dry/dust-free
Each rotation is about	0.01ml	0.05ml	0.15ml	0.25ml	0.45ml
Repeatability	-1%~+1%	-1%~+1%	-1%~+1%	-1%~+1%	-1%~+1%
The min dose	0.005ml	0.01ml	0.04ml	0.08ml	0.15ml
Flow range	0.33-1.2ml	1.65-6.0ml	4.95-18.0ml	8.25-30.0ml	16.5-60.0ml
Min starting torque	Over 0.8N.m	Over 0.8N.m	Over 0.8N.m	Over 0.8N.m	Over 0.8N.m

Product application
1.Electronics (automation) industry Epoxy resin adhesive, resin adhesive, polyurethane adhesive, silicone and so on.
2.Chemical Industry: pigment, lubricating oil, perfume, dye, emulsified asphalt, emulsified rubber, catalyst, paint coatings synthetic fiber liquid, viscose solution, polymer, flocculating agent, precipitating agent, lime milk, liquid commodity,resins, calcium carbonate, titanium dioxide, styrene-butadiene latex, additives, etc.
3.Food Industry: syrup, mashed potato, dairy product, chocolate, soy sauce, jam, batter, meat stuffing , yeast, starch,peanut butter, cream drinks, etc.
4.Paper Industry: transportation of different concentrations of glue, brightener, coagulant aid, talcum powder, deinking agent, various coatings, black and white liquid, heavy oil from Alkali recovery, and pulping chemicals. Company Profile
Company exhibition
Packaging & Shipping
FAQ
1.What products does Ronice offer ?
(1) Ronice offers screw pump, Screw pump accessories, Screw valve and the fluid system product.
(2) The product range summary of Ronice
Progressive cavity pumps for conveying and metering low to highly viscous media with or without solids
Control systems for monitoring, regulating and controlling processes
Services: consulting, commissioning, maintenance, NETZSCH ,SEEPEX, and MONO Universal Spare parts, repairs
2. Does Ronice supply custom-made pumps ?
Yes, this is our specialty, we customize different design and material combinations for each application's modular system. This means that we develop the best technology and the most economical solution for your needs.
3. Can Ronice spare parts be ordered online ?
Yes, Ronice screw pumps and spare parts as well as other brands (NETZSCH,SEEPEX.MONO) Universal accessories can be ordered online. For order please contact us.
4. How fast can my Ronice pump be delivered ?
Normally, standard pumps are delivered in 4 to 6 weeks. Emergency within seven days may be possible. Please contact us . 5.Product quality guarantee
(1) According to the international standard, whole pump 1 year warranty,
(2) Spare parts 6 months warranty
6.RoNice is manufacturer and tading together compnay
Buyers Attention:
1.Can screw pump dry running ?
No, the conveying elements are permanently in contact with one another, which means that dry running must be avoided in progressive cavity pumps. The Ronice dry-running protection device offers reliable protection.
2.Our services
1 Our screw pump series products, reasonable price, quality service, provide quality inspection. Welcome to sample Custom-made.
2 we have a special quality Supervision Department to ensure the quality of mass production.
3 If the product has quality problems, we will deal with the first time, find out the cause, take responsibility.
4 If you are interested in our products and companies, please leave a message or email us, we will give you an answer within 24 hours
3.Why choose us ?
1. Factory Direct Sales, no intermediate links, competitive price
2. The original machine factory, the production of stable product quality, do not use low quality equipment.
3. Ensure ontime delivery, procurement, we can provide the best quality of service control, transportation, documentation and so on.
4. We provide samples and OEM services.
5. We will reply to your enquiry within 24 hours.
6. professional team, so that our customers feel relaxed and comfortable working with us in
7. Please contact us by email and we will send you more pictures for more choices of our products.
4.How to make an order for Ronice screw pump ?
(1) After understanding the specific parameters, the model was determined
(2) Client arrange 30% deposit after receiving our PI(proforma invoice),
(3) We start bulk production and finish production within agreed lead time
(4) We send shipping documents to client
(5) Client arrange balance payment
(6)We arrange shipment , and send original documents or telex release the goods

---
