25mm Bench Industrial Drill Machine for CNC Process

Product Description

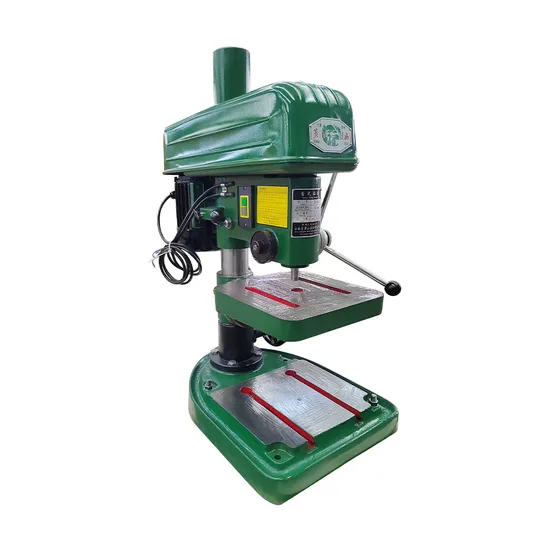

Industrial Grade Multifunctional Bench Drill
Product Description
Thickened cast iron base
Copper wire motor
Double scale
1.Multi-purpose Machine Easy to Deal with
Stable cast iron base, integrated motor powerful power and multiple functions.
2.One Machine for Multiple Purposes
Suitable for metal/wood/stone/plastic and other materials, tapping and drilling.
3.Excellent Details Create Excellent Experience
Quality reflected in every corner
(1)High Power Copper Core Motor
Made of high-purity copper wire,durable, fast speed, low power consumption and fast heat dissipation.
(2)All Steel Handle Fast and Precise Lifting
Unscrew the locking buckle, adjust the lifting handwheel, and lift the drill bit quickly and accurately.
(3)Balanced Adjustment Pulley Durable and Non-slip
The pulley is adjusted through dynamic balance to ensure stable rotation, reduce vibration and make it quieter.
(4)High-quality Lifting Handwheel
Quickly and accurately lift, loosen the locking buckle, adjust the lifting handwheel, and complete the lifting.
(5)High-Precision Metal Drill Chuck
The stainless steel chuck is powerfully clamped to ensure that the drilled holes are not offset and are stable and do not fall off.
4.Factory Direct Sales Source factory, quality assurance
Win tomorrow with trust in quality

Model	Z4116/16B
Max. Drilling capacity	16mm
Diameter of column	70mm
Max.spindle travel	100mm
Morse taper of spindle nose	MT.2
Spindle speeds	480-800-1400-2440-4100 r/min
Size of worktable	265x265
Size of base worktable	250x300
Distance from spindle axis to column surface	193mm
Distance from spindle nose to worktable	0-255mm
Distance from spindle nose to base surface	250-500mm
Motor	0.55kw
GW/NW	115/100 kg
Ship measurement	80x42.4x96.2cm
