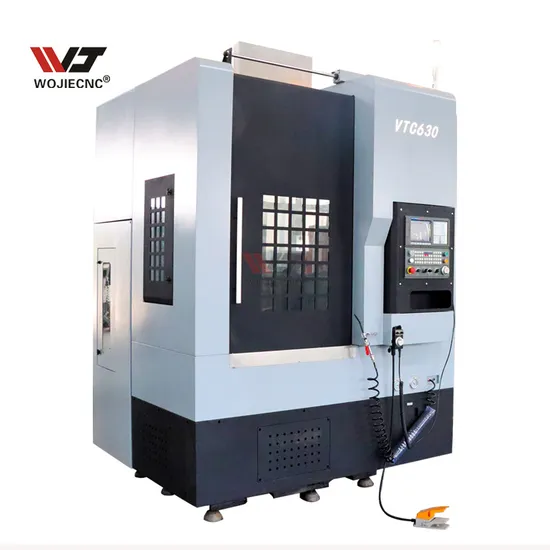

High-Precision Vtc 630 Single Column CNC Vertical Turning Lathe Machine Price Vtc630 Vertical Automatic CNC Lathe with Siemens Fanuk GSK System for Metal

Product Description

Product Description
VTC series lathe is an automated CNC machining lathe used for machining inner and outer cylindrical surfaces, conical surfaces, end faces, grooving and chamfering of parts. It is especially suitable for machining automotive brake hubs, wheel drums, clutch pressure plates, flywheel housings and other parts.
Product Parameters

Specifications	VTC630
Max.Swing diameter	630mm
Max.Turning diameter	600 mm
Hydraulic chuck diameter	400mm
Spindle speed	50-1000rpm
Cutting feed rate	0.1-1000mm/min
Travel of toolpost	X:450mm Z:680mm
X axis rapid feed speed	15000mm/min
Z axis rapid feed speed	12000mm/min
Tool holder form	Tool holder (hydraulic tool holder)
Main motor power	15Kw 143NM
Feed motor power and torque	2.4 kW /15NM
Cooling pump motor power and flow	250W / 40L/min
Tool positioning accuracy	X:0.015mm Z:0.02mm
Tool reset accuracy	X:0.012mm Z:0.012mm
Weight	4800kg
Overall dimension of machine tool(L*W*H)	2000×1860×2600mm

Detailed Photos

Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin/ KND	Turret Standard configuration: 4/8/12 station hydraulic turret Optional configuration: 12 station power turret
Hydraulic chuckStandard configuration:610mm hydraulic chuck	Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.
Pneumatic system Electronic display, stable air pressure	Electrical partStandard configuration: DELIX

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ

1. What are the payment terms? A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight. After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions. 2. What does your company mainly produce? A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc. 3. When is the delivery time? A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details. 4. What are your trade terms? A: FOB, CFR, CIF, DDP, DAP, FCA, etc. 5. What is your minimum order quantity and warranty period? A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine. 6. What is the packaging of the machine? A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
