24VDC/220VAC Display Window Adjustable Water Flow Switch

Product Description

Product Description

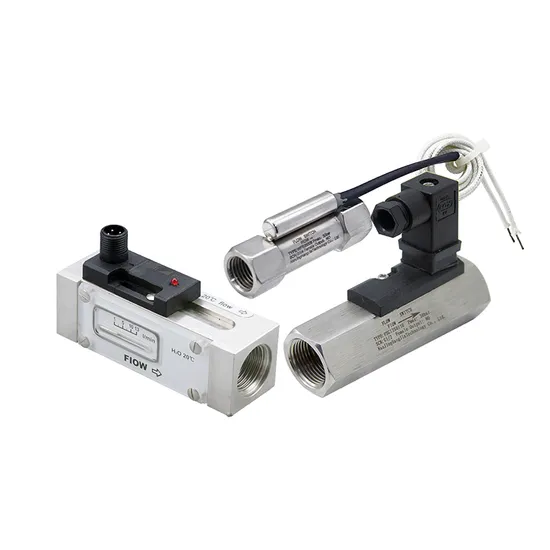

FS20 Flow Switch is made of stainless steel housing, aluminum can be selected. Easy installation, is a mechanical flow switch, for liquid or gaseous media. Mechanical part and electronic part are completely isolated, suitable for small flow economy type.

Product Features
Minimal pressure loss, good repeatability and stain resistance With a switch setting scale, users do not need to set in the field. Dual-use for vapor and liquid , can be used for water-cooling system and hydraulic system LED display switch status, dual switch output selected Product Parameters

Measuring Medium	Water,Gas,Oil
Accuracy	±0.5%F.S
Hysteresis	Depending on switching point, minimum 0.6L/Min
Switch setting	Calibrated in the medium water, temperature 20ºC, the horizontal installation status. (Note:The installation location, medium and temperature changes may affect the switch value slightly)
LED display	DC power supply LED display switch status, AC no LED display
Output Signal	Reed switch
Contact Capacity	24VDC/250VAC,100mA
Max Withstand Voltage	50bar (aluminum), 100bar(stainless steel)
Average pressure loss	0.3bar( at 25L/min)
Ingress Protection	IP65
Medium Temperature	90ºC
Electrical Connection	M12

Dimension (Unit:mm)
.Case: stainless steel or aluminum
.Piston: POM
.Spring: stainless steel
.Seal: NBR

Reed switch Normally open		SPST output
