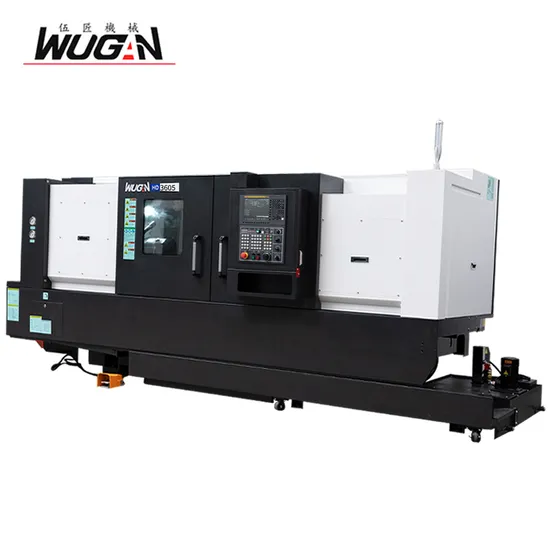

HD3605-20 High-Performance CNC Machinery with Gantry and Drilling Functions

Product Description

- Experience unparalleled precision and durability with our box guideways, engineered specifically for heavy-duty cutting tasks.
- Our robust 30-degree slanted one-piece bed structure ensures unmatched rigidity, propelling your machining capabilities to new heights.
- Crafted with precision, the stabilized unit structure effectively minimizes thermal displacement, guaranteeing your operations remain consistent and reliable.
- Seamlessly integrated processing through synchronized control of Main/Sub spindle (SY Type) enhances productivity and precision.
-- Embrace versatility with our multi-tasking operation, featuring a wedge-type Y-axis BMT turret, tailored for complex machining tasks.
Achieve outstanding efficiency with our excellent rapid traverse rate of 30 m/min along the Z-axis, ensuring swift and precise movements.
- Our ergonomic design offers convenient access to both chuck and tool, optimizing user experience and operational efficiency.
Product Parameters

Item		Unit	HD3605	HD3605M
Capacity	Swing over bed	mm	Φ940
	Max. turning diameter	mm	Φ540	Φ520
	Max. turning length	mm	1,350	1,256
	Bar working diameter	mm	Φ102
Spindle	Max. spindle speed	r/min	2,000
	Spindle nose	ISO	A2-11
	Spindle through hole diameter	mm	Φ131
	Chuck size	inch	15"
	Main spindle motor power	kW	18.5/15
	Max. spindle torque for turning	Nm	540/440
Feedrate	Travel(X/Z)	mm	295/1350
	Rapid traverse(X/Z)	m/min	24/30
Turret	No. of tool stations	EA	12
	Tool size	mm	32/ Φ50	32/ Φ50
	Turret Index time	sec	0.2
Rotary tool Capacity	Collet size	-	-	ER40
	Tool holder mount type	-	BMT75
	Max. rotary tool speed	r/min	-	4,000
Tailstock	Quill bore taper	-	MT5
	Quill diameter	mm	Φ100
	Quill travel	mm	120
Machine dimension	Floor space	mm	4,195X1,978
	Height	mm	1,857
	Weight	Kg	7,200
NC	CNC System	-

Detailed Photos
ALL-IN-ONE TYPE OF BED
Optimal Structural Analysis
An advanced structural analysis was applied to enhance the design, elevating the tool post body while reducing machine height. This ensures the bed maintains its dynamic rigidity even amidst heavy-duty cutting operations.
Additionally, the HD-SY Series features a bed slope pitched at 30 degrees, ensuring more stable machining performance.
Integrated Coolant Tank
The innovative design incorporates a front-installed coolant tank for enhanced convenience, with chips easily removable from the machine's right side.
Box Guideway
Engineered with precision, all axes of the HD-SY Series boast box guideways for superior travel ability, adeptly offsetting vibrations during heavy-duty cutting.
Sealed GIB Structure
The X-axis of the HD Series is fortified with a sealed GIB structure, minimizing turcite damage from chips and ensuring long-lasting performance.
Rapid Traverse Rate (X/Y/Z/ZB)
HD 3605Y/SY offers impressive speeds of 24/10/30/24 m/min, optimized for swift and precise movements.
Travel (X/Y/Z/ZB)
HD 3605Y/SY delivers extensive travel ranges of 265/120/1350/1350 mm, accommodating comprehensive machining needs.
Mill Turret
The BMT turret offers robust tool security with four bolts and keys on the tool mounting surface, ensuring exceptional rigidity and precision.
Mill Tool Holder
Enhanced machining capability is achieved with the straight milling head tool holder and angular milling head tool holder, enabling versatile operations from side machining to I.D.
BMT 65P (HD3605Y/SY)
Speed (rpm): Reaches up to an impressive 4000 r/min, catering to demanding speed requirements.
Collet size: ø20 (ER32), designed for precision and flexibility in various applications.
Indexing time: Swift 0.2 sec/step, optimizing operational efficiency and productivity.
Suzhou Wugan Intelligent Equipment Co., Ltd. excels in manufacturing high-performance CNC lathes and turning centres, designed with cutting-edge international lathe technology. Fusing high rigidity, precision, and productivity with a sleek appearance, we deliver efficient, reliable cutting performance. To meet advanced customer demands, our high-performance mill-turn combined model is a game-changer, offering turning, milling, and drilling in one machine. This enhances output capacity and ensures our lathes meet diverse processing needs with ease.
