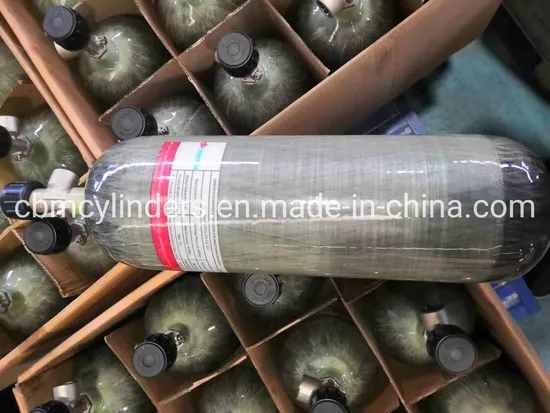

Cbmtech Carbon Fiber Breathing Air Cylinder 2L, 3L, 6.8L, 9L, 12L

Product Description

CBMTECH Carbon Fiber Breathing Air Cylinder 2L, 3L, 6.8L, 9L, 12L, Air Breathing Apparatus Cylinders, Air Breathing Apparatus SCBA Cylinder, Carbon Fiber Cylinder for breathing system.
Ref. Specs on CBMTECH Carbon Fiber Breathing Air Cylinders:
-Water volume: 1.0Liter to 12Liter;
-Outer diameter: 85mm to 208mm;
-Working pressure 200bar/300bar;
-Cylinder life-span: 15years;
-Aluminium lined and carbon fiber fully wrapped.
*Advantages: Safe, lightweight, corrosion-resistant, Superior strength, Durable design, perfect treatment for surface interior and exterior.
*Applications: Firefighting, pit rescue and other life support system.
*Referenced specs of hot sale 6L Spare Cylinder & Air Breathing Apparatus Cylinder:
-Type: CBMTECH-E6/30;
-Air cylinder volume: 6.0L;
-Air storage capacity: 1800L;
-Normal working pressure: 300Bar;
-Alarm pressure: 50-60Bar;
-Weight: 21KGS;
-Approval Certificate: CCS EC RS;
-Packing size: 730*300*450mm.
Referenced deatils of each SCBA cylinder set:
-1). Full-Face Mask: Wide visual window---highly transparent, strongly wear resistant, and anti-fogging; Head-mounted wearing manner---comfortable and convenient; Silica gel---without toxicity, smell or irritation, but with good air tightness;
-2). Supply Valve: Small, simple and effective, with large air output flow and bypass output;
-3). Waist Belt: Fasten with buckle which is easy to adjust;
-4). Fast Tube Connector: Small, able to be assembled just with one hand, anti-loose;
-5). Pressure Reducer: Small size, light weight, large output flow, stable output pressure;
-6). Cylinder Valve: With high pressure safety device, easy to switch on and off;
-7). Back Support/ Back frame: Carbon fiber material, flame resistance, strong and light, with foam cushion, comfortable to wear;
-8). Shoulder Strap: With flame resistance polyester, length adjustable and with foam cushion, comfortable to wear;
-9). Air Pressure Gauge: Big size meter plate made of luminous material and rubber protective cover, visible in darkness;
-10). Alarming Whistle: Just in front of chest, easy to be heard small size and light; It will be activated when the pressure in the cylinder is lower than 5.5+/-0.5Mpa;
-11). Cylinder Belt: Ratchet buckle construction which ensures the cylinder is strongly fastened;
-12) Air Cylinder: Aluminum cylinder inside, wrapped with carbon fiber, 30Mpa working pressure, light and strong, with high pressure safety device.
CBMCARE series self-contained open-circuit compressed air breathing apparatus are used widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehose, factory and metallurgy.

Specification	Outer Diameter	Water Volume	Length	Weight	Working Presure
	(mm)	(litre)	(mm)	(kg)	(bar)
CRPIII-85-1.0-30-T	85	1	292	0.8	300
CRPIII-115-1.4-20-T	115	1.4	261	1.5	200
CRPIII-115-1.6-20-T	115	1.6	270	1.6	200
CRPIII-96-2.0-30-T	96	2	433	1.5	300
CRPIII-128-2.3-20-T	128	2.3	292	1.7	200
CRPIII-140-2.3-20-T	140	2.3	268	1.8	200
CRPIII-128-2.4-20-T	128	2.4	302	1.8	200
CRPIII-135-2.4-20-T	135	2.4	285	1.7	200
CRPIII-128-2.5-20-T	128	2.5	312	1.9	200
CRPIII-135-2.5-20-T	135	2.5	296	1.9	200
CRPIII-132-2.6-20-T	132	2.6	308	1.9	200
CRPIII-132-2.7-20-T	132	2.7	310	1.9	200
CRPIII-114-3.0-30-T	114	3	446	2.1	300
CRPIII-135-3.0-30-T	135	3	340	2.1	300
CRPIII-137-4.7-30-T	137	4.7	492	3	300
CRPIII-157-6.0-30-T	157	6	470	3.6	300
CRPIII-157-6.8-30-T	157	6.8	528	4.1	300
CRPIII-161-9.0-30-T	161	9	560	5.2	300
CRPIII-208-12.0-30-T	208	12	570	7.6	300

*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our medical gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com

---
