China Automatic Plastic HDPE PP PVC Toy, Bottle, Drum, Container Extrusion Making Blowing Blow Molding/Moulding Machine

Product Description

PXB90D

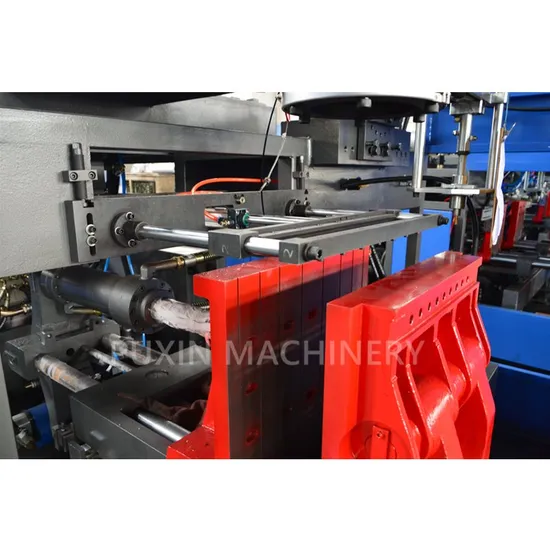

5L - 12L Double Station Blow Molding Machine
Special Feature:
- High Speed Double Station For HDPE, PE, PP, PS Material Product
- Double Capacity with Energy Saving
- Perfect Usage for 5L - 12L Bottle, Toy, Jerry Can, Container
- Optional Transparen Line
- Quick Action Speed, Stable Running
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China

Basic Equipment

Clamping system	Double Station+High-precision guide+large arm cylinder axle
Extrusion System	Hard gear surface decelerator+Japan inverter
Die system	Center -incoming extrusion die with special steel
Hydraulic system	Japan hydraulic valve seal and proportional control
Control system	Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts

Parameters

Specifications
Material		PE,PP, PVC, PA...
Max container capacity	L	12
Number of die	Set	1, 2, 3, 4
Output(dry cycle)	Pc/hr	320
Machine Dimension(LxWxH)	M	4.5x3.5x2.9
Total weight	T	8.0
Clamping Unit
Clamping force	KN	95
Platen opening stroke	mm	200-600
Platen size	mm	550x460
Max mould size(WxH)	mm	550x430
Mould thickness	mm	210-330
Power
Max drive	KW	67
Total power	KW	78
Fan power for screw	KW	0.6
Air pressure	MPA	1.0
Air consumption	M3/min	0.9
Average energy consumption	KW	31
Extruder unit
Screw diameter	mm	90
Screw L/D ratio	L/D	24
Melting capacity	Kg/hr	130
Number of heating zone	zone	4
Extruder heating power	KW	21.4
Extruder driving power	KW	37
Die
Number of heating zone	zone	3
Power of die heating	KW	5.7
Max die-pin diameter	mm	180
Center distance of double die	mm	250

Delivery Time:
- No later than 45 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
