Basic Info.
Jaw Plate Material
Hard Alloy
Object
Basalt, Copper Ore, Gold Ore, Granite, Iron Ore, Limestone, Quartz
Product name
Jaw Crusher Machine
Function
Crushing Material
After-sales Service Provided
Engineers
Applicaton
Mining Quarry Stone Crushing Plant
Factory visit
Warmly Welcomed
Color
Customized Color Acceptable
The Machines classification
Crushing Line
Processed Materials
200 Materials (<300 Mpa)
Installation
Under Engineer′s Guide
Transport Package
Wooden Box
Specification
1240*1390*920MM
Production Capacity
100 Pieces / Year
Packaging & Delivery
Package Size
121.40cm * 139.00cm * 95.00cm
Package Gross Weight
2800.000kg
Product Description

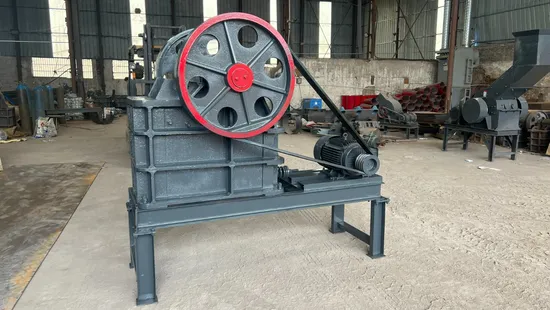

Product Description JAW CRUSHER
Jaw crusher is widely used in the world market nowadays and has the features of the high reduction ratio,simple structure, and easy maintenance, lt has two types, primary and secondary crushers.The compressive resistance of the crushed materials is up to the 320MPa.The large and medium-sized crushers are the key products in our company and stand in the front of the industry in the aspects of design and production.
Advantages High crushing ratio
Evenly particles
High output
Simple structure
Convenient maintenance
Low production cost
Detailed Photos
Product Parameters
| No | Size | Motor | Weight | Overall size(mm) |
| 1 | 250*400mm | 15KW | ≤2.1T | 1060*1090*1350 |
| 2 | 280*420mm | 15KW | ≤2.6T | 1300*1100*1290 |
| 3 | 380*500mm | 22KW | ≤3.5T | 1580*1330*1300 |
| 4 | 400*600mm | 30KW | ≤6.6T | 1640*1735*1650 |
| 5 | 500*750mm | 55KW | ≤9.1T | 1915*1950*1710 |
| 6 | 600*900mm | 75KW | ≤16.4T | 2270*2040*2285 |
| 7 | 700*900mm | 75KW | ≤16.9T | 2340*2040*2145 |
FAQ 1. Are you manufacture or trading company? We are factory, established in 2003. 2. How long is your delivery time? 7-10 days for the stock, 15-30 days for the mass production. 3. What is your payment method? 30% deposit in T/T advance, 70% balance before shipment. 4. How long is the warranty? Does your company supply the spare parts? One year. Spare parts for you at lowest cost. 5. If I need the complete crushing plant can you help us to build it? Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
>>
