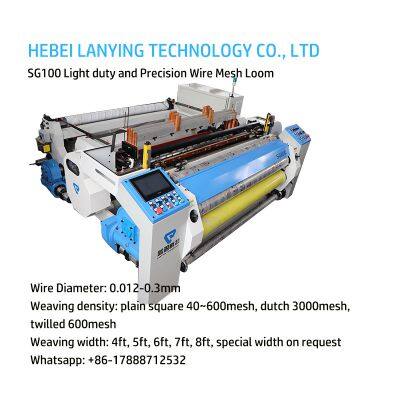

| Wire diameter | 0.016-0.3mm | ||
| Weaving density | Plain weave square hole 40-400 (or 20-260)mesh/inch; twilled weave upto 600mesh/inch | ||
| Nominal width (special width on request) | 1.3m | 1.6m | 2m |
| Speed(the actual speed depends on the weaving specs and width) | 80-120RPM | 80-100RPM | 65-80RPM |
| Total power | 7.5KW | 8.5KW | 8.5KW |
| Size (L*W*H) mm | 2750X3300X1500 | 2750X3600X1500 | 2750X4000X1500 |
| Weight | 4200KG | 4500KG | 4600KG |
| Basic tension | 15000 N/m | ||
| Product Series | SG100 Series | SG130 Series | SG160 Series | SG180 Series |
| Standard weaving width (Special width on request) | 1300mm 1600mm 2000mm | 1300mm 1600mm 2000mm 2500mm 3000mm | 1300mm 1600mm 2000mm 2500mm 3000mm | 1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
| Wire diameter range | 0.016-0.3mm | 0.06-0.45mm | 0.1-0.7mm | 0.2-2.1mm |
| Plain weave square hole (mesh/inch) | 40-400 | 20-260 | 10-100 | 6-60 |
| Twill weave (mesh/inch) | ≤600 | ≤400 | ≤350 | ≤260 |
| Wire material | Stainless steel, iron, copper, aluminum, platinum, nickel, polyester | Stainless steel, iron, copper, aluminum, platinum, alloy, nickel, polyester | Stainless steel, iron, copper, aluminum, platinum,alloy, nickel, polyester | Stainless steel, iron,copper, aluminum, alloy, nickel, polyester |
| Speed (the actual speed depends on the weaving width and specs) | 100 rpm （max 120rpm） | 100 rpm （max120rpm） | 50-70 rpm | 35-50 rpm |
| Basic tension | 15000 N/m | 20000 N/m | 40000 N/m | 60000 N/m |
