Hydraulic Automatic My4080 Precision Surface Grinding Machine Tools

Product Description

Product Description

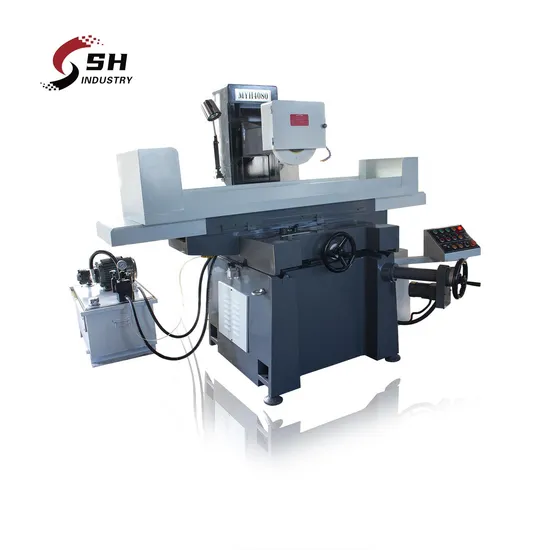

Hydraulic Automatic My4080 Precision Surface Grinding Machine Tools
We are the most professional in making surface gringding machine
Product Parameters
The main performance characteristics:1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.5. No vibration, low noise motor spindle.6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Main technical specifications	Model					MY4080
	Working table	Table Size (L× W)			mm	800*400
		Max movement of working table(L× W)			mm	900*480
		T-Slot(numberx width)			mm	3x 14
	Grinding wheel	Max distance from spindle center to table surface			mm	600
		Wheel Size(Outer diameterx widthx Inner diameter)			mm	φ355x 40x φ127
		Wheel speed	50HZ		r/min	1450
			60HZ			1680
	Feed amount	Longitudinal speed of working table			m/min	3-25
		Cross feed(front and rear) on handwheel		Continuously(Variable Transmission)	mm/min	600
				Intermittently(Variable Transmission)	mm/times	0-8
				Per revolution	mm	5
				Per graduation	mm	0.02
		Vertical(up and down) feed on handwheel		Per revolution	mm	0.8(1.0)
				Per graduation	mm	0.01
		Speed of vertical feed			mm/min	500
	Motor power	Spindle motor			Kw*p	4*4
		Coolant pump motor			W	125
		Lifting motor			W	180
		Hydraulic motor			kw	2.2*6
	Working precision	The parallelism of working surface to base level			mm	00:00.0
		Surface roughness			μm	Ra0.4
	Weight	Net			kg	2800
						3200
		Gross
	Overall dimension(Lx Wx H)				mm	2550*2000*2100

Realistic photos

Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
