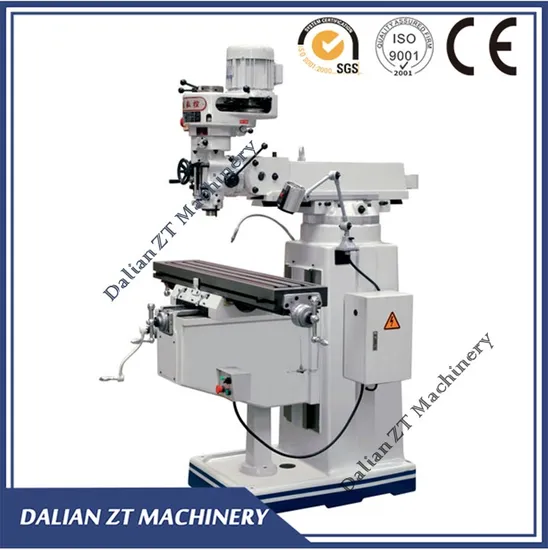

X6325 Vertical RAM Turret Milling Machine

US$3,000.00-7,000.00 1 set (MOQ)

Basic Info.

Model NO.

X6325

Structure

Bridgeport

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Table Size

254X1270mm

Spindle

R8, Nt40

Milling Head

Step Pulley/Variable Speed/Frequency Conversion

T-Slots

3X16

Milling Head Manufacturer

Taiwan

Guide Ways

Turcite

Worktable Protection/Spindle Protection

Optional

Horizontal Spindle

Optional

Head Tilting

+/-45 Deg;

Transport Package

Wooden Case

Specification

2.2kW, 3.75KW

Trademark

Dalian ZT Machinery

Origin

China

HS Code

8459590000

Production Capacity

1000 Sets

Product Description

Features:
The turret milling machine is widely used for machining plane and surface at any angle. It can mill slot, drill hole, ream and bore hole in workpiece. The milling head can rotate ±90° (left and right); ±45°(front and back), and the ram can rotate horizontally 180°. The spindle with overload protection can rotate at high speed. The machine can be equipped with DRO and auto feeder to customers' requirements.
X6330 X6330A X6325W Specifications

Item	X6330	X6330A	X6325W(V/H)
Table size	305x1370mm; 305x1500mm		254x1270mm
Longitudinal travel	870mm;1000mm		750mm
Cross travel	360mm		400mm
Vertical travel	380mm		400mm
T-slot No. and size	3x16		3x16
Ram travel	500mm
Distance from spindle nose to table surface			460mm
Spindle bore taper	ISO40		NT40/R8
Spindle travel	127mm
Spindle speed	Standard: 16 steps 50Hz:65-4500rpm 60Hz:80-5440rpm Optional: variable 65-3750rpm		V:66-4540rpm H:40-1300rpm
Spindle motor	3.7kW/5HP		V: 3HP H: 3kW
Head swivel	±90°		±90°
Head tilting	±45°	No.	±45°
Weight of machine	1630kg	1650kg	1380kg
